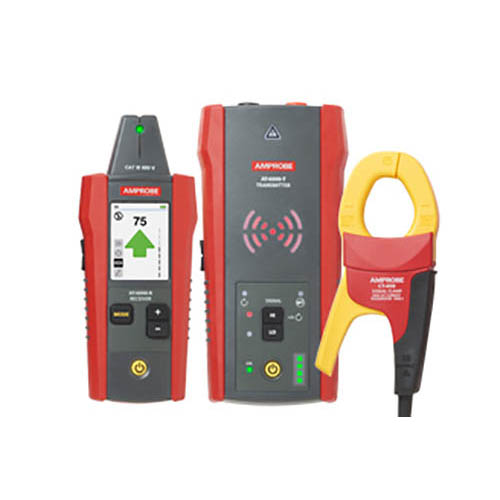

The Amprobe AT6030 wire tracer kit combines a Receiver and powerful Transmitter to locate energized and de-energized wires, breakers, and fuses without having to disconnect any equipment. The Receiver features four tracing modes optimized for a range of applications. Its fully automatic breaker tracing capability saves time and eliminates the confusion of multiple false positives by detecting the highest recorded signal in a breaker or fuse. The Transmitter utilizes two optimized frequencies that allows for a clean and reliable signal. The included Signal Clamp can be used in applications where there is no access to bare conductors by enabling the Transmitter to induce a signal into a wire through insulation. Whether you're a novice user or an expert, the AT-6030 Amprobe Advanced Wire Tracer kit will help you get the job done fast.

AT-6000-R Receiver

The AT-6000-R Receiver detects the signal in wires and cables using two methods: active tracing method (with the Transmitter) and passive tracing method (without the Transmitter). In hard-to-reach areas, the Receiver's Tip Sensor can be used to trace wires in corners, tight spaces and junction boxes.

AT-6000-T Transmitter

The AT-6000-T Transmitter works on Energized and De-energized circuits up to 600 V AC/DC in Category I through Category III electrical environments and features high signal, low signal, and loop modes. The Breaker Identification feature eliminates confusion of multiple false positives, common with older technology tracing tools, by identifiying the one correct breaker or fuse with the highest recorded signal.

CT-400 Signal Clamp

The CT-400 Signal Clamp is used for applications where is no access to the bare conductors by enabling the AT-6000-T Transmitter to induce a signal into a wire through the insulation.

Product Features:

Wire Tracer Kit with Signal Clamp

Traces wires in walls, ceilings, floors and corners

Locates breakers and fuses

Pinpoints shorts and opens

High resolution 2.5" TFT LCD color display

Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits

Comes with custom Amprobe hard carrying case, test leads, CT-400 signal clamp, and accessories

Compatible with optional TIC 410A Hot Stick attachment to extend your reach

Three Transmitter signal modes

"High Signal" mode for normal circuits

"Low Signal" mode for precision tracing in difficult areas

"Loop" mode for closed loop de-energized circuits

Four Receiver tracing modes

"Quick Scan" mode allows for quick wire detection at a longer distance

"Precision" mode precisely pinpoints wires or faults located behind walls, floors, or ceilings

"Breaker Identification" mode facilitates quick and easy breaker locating

"Non-Contact Voltage Detection" mode utilizes passive tracing without the Transmitter to verify if a wire is energized

Included ;

1 - CT-400 Signal Clamp

1 - AT-6000-R Receiver

1 - AT-6000-T Transmitter

1 - TL-6000 Test Lead and Accessory Kit

1 - CC-6000 Hard Carrying Case

1 - Set of Batteries

1 - Set of Rechargeable Batteries

3 - Battery Chargers

1 - User Manual
