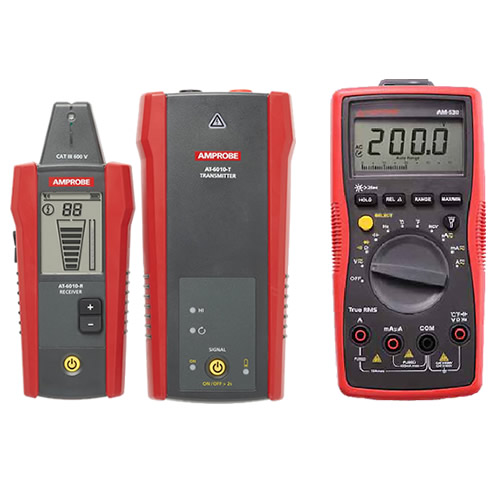

The Amprobe AT6010/AM530 features the AT-6010 600 V AC/DC Advanced Wire Tracer Kit and AM-530 True-RMS Auto/Manual Ranging Electrical Contractor Multimeter. With the AT-6010 Advanced Wire Tracer, it has never been easier and safer to locate Energized and De-energized wires, breakers and fuses. When the Transmitter is connected to the circuit, the Receiver easily detects the signal in the wires or cables behind walls, ceilings and floors. The Transmitter works on Energized and De-energized circuits up to 600 V AC/DC in Category I through Category III electrical environments, allowing for work directly on an energized circuit without the need to take equipment offline. The Transmitter also features high signal mode for general tracing and a loop mode designed specifically for locating shorts, as well as two optimal tracing frequencies that are automatically activated based on the detected voltage. The complete AT-6010 kit features test leads and accessories.

The Amprobe AM-530 autoranging digital multimeter is the multimeter of choice for professional electrical contractors. The AM530 is a True-rms digital multimeter so it accurately measures voltage on systems affected by harmonics. With its full menu of digital multimeter features, you can use it to: measure and verify the presence of voltage before connecting new equipment or performing repairs; run new wiring; check continuity of electrical connections; identify blown fuses; troubleshoot motors or check transformers.

The CAT III 600V safety rating provides an extra measure of safety for high voltage multimeter applications. The Amprobe AM-530's built-in flashlight helps you see wire colors in the dark and the third hand probe holder gives you an extra hand when you need it.

Why you need a True-RMS Reading Multimeter

True-RMS instruments are accurate on any AC waveform. There are two basic AC measuring systems. One is "average sensing, RMS indicating." This is the most common system because it is affordable and easy to manufacture. An instrument with this type of measuring system measures the average of a sine wave, and then multiplies it by 1.112, allowing the instrument to indicate RMS. This measuring system is only accurate on sine waves.

The second measuring method is called "RMS Sensing, RMS Indicating." An instrument with this type of measuring system computes the RMS value of the measured waveform (sine or otherwise). This is referred to as "True-RMS" reading. This measuring system is accurate for any waveform. When an average sensing instrument is used on a non-sinusoidal waveform, measurement accuracy could be off as much as 50%. Since you may not know what type of AC waveform you are measuring, a True-RMS instrument should be used whenever possible.

AT-6010 Features:

• Receiver/Tracer operating voltage: 0 to 600 V AC/DC
• Receiver/Tracer operating frequency: Energized 6.25 kHz/De-Energized 32.768 kHz
• Receiver/Tracer measurement category: CAT III 600 V
• Tracer hazardous voltage detection: > 30 V AC/DC
• Tracer current output of signal (typical):

                    * Energized circuit: HI mode: 60 mA RMS

                    * De-energized circuit: HI mode: 130 mA RMS

                    * Loop mode: 160 mA RMS

• Tracer signal voltage output (nominal):

                    * De-energized circuit: HIGH: 33V RMS, 140 Vp-p

• Receiver range detection (open air):

                    * Tip sensor (Energized):

                                - Max distance via air: up to 20 ft (6.1 m)

                                - Pinpointing: approx. 1.97 in (5 cm)

                    * Tip sensor (De-energized):

                                - Max distance via air: up to 14.7 ft (4.5 m)

                                - Pinpointing: approx. 1.97 in (5 cm)

• Receiver display size: LCD 2.5 in (6.35 cm)
• Power: 1.5 V AA Batteries
• Finds shorts and opens
• Transmitter "Loop" mode for closed loop de-energized circuits
• Two frequency modes for optimal tracing in energized and de-energized circuits
• Large LCD Receiver screen with two digit readout, bar graph and sound to easily determine wire location
• Simple one button Transmitter operation
• Compatible with the CT-400 Signal Clamp accessory (not included) for inducing tracing signal on cable when there is no access to bare conductors

Applications

• Trace energized and de-energized wires
• Identify breakers and fuses
• Connect to GFCI protected circuits
• Find breaks and opens
• Find shorts
• Trace wires in metal conduit
• Trace non-metallic pipes and conduit
• Trace shielded wires
• Trace underground wires
• Trace low voltage wires and data cables
• Sort bundled wires
• Map a circuit with test leads
• Trace breakers on system with light dimmers

AM-530 Features:

• True-rms technology improves accuracy in electrically noisy environments
• Measures AC/DC voltage up to 600V, AC/DC current, resistance, frequency, capacitance, and temperature
• Non-contact voltage detection enhances safety
• Audible continuity quickly identifies shorts and opens
• Diode test to verify diode polarity
• Data hold freezes the reading on the display for further analysis
• MIN/MAX recording records min/max measurements over time to show voltage fluctuations
• Relative zero mode displays the difference between the actual reading and a stored reference value and may be used with any function or range
• Combines user friendly features such as, auto power-off to conserve battery life, low battery warning, a "third hand test probe holder, built-in test leads storage, a built-in flashlight, and a Velcro strap to hang the meter
• Auto and manual-ranging delivers maximum flexibility
• Backlit LCD display with analog bar graph makes it easy to view results
• CAT III 600V safety rated

Included ;

1 - AT-6010 Advanced Wire Tracer Kit with 2.5 in. LCD Display

1 - AM-530 True-RMS Auto/Manual Ranging Electrical Contractor Multimeter
