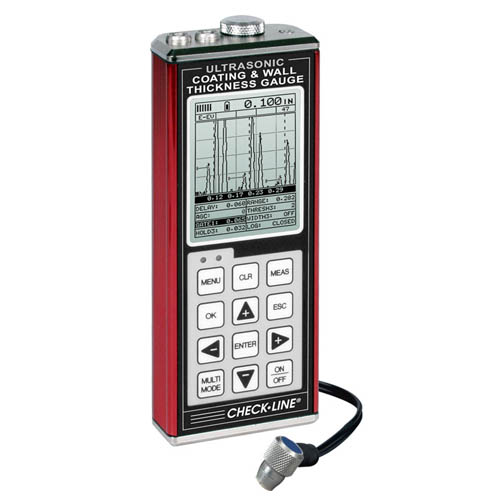

The new CHECKLINE® TI-CMXDLP is the top-of-the-line model in the CMX Series of Gauges that measures both coating and wall thickness quickly and accurately—from only one side. In addition, when switched to Pulse-Echo mode, the TI-CMXDLP automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting—without removing the coating.

It features an A-Scan Display Mode allowing the user to see the actual wave form echoes, graphically, providing the insight necessary to tune the settings on the gauge for optimal performance. This is especially important on challenging measurement tasks. The TI-CMXDLP also features a new E-EV Operating Mode ("Echo-Echo-Verify"), also known as Triple-Echo Mode, which provides addition assurance that the displayed measurement is accurate and fully verified by subsequent echoes.

Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

Five user-selected operating modes are included:

Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.

Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.

Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.

Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)

Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.013 to 2.540 mm). Range will vary slightly depending on the coating.

New Features in Version 2.0

• Built-in Memory, 4GB Capacity
• Data transfer to PC via USB output
• Stored data in "Grid" or "Sequential file with date & time stamp
• High speed scan 200Hz
• TDG (Time Dependent Gain)
• Quick screen capture to (.tif) file
• Improved linearity tables (in all measurement modes)
• 110dB gain range
• Setups can be backed up or restored using USB connection
• Display update rate (25Hz)
• PRF (pulse repetition frequency 250Hz)
• Line power available using USB-C to PC or standard power adapter
• Display rotation (portrait/landscape) – color version only
• Display update rate (25Hz black & white, 60Hz color)

Features

• Wide variety of Probes, both DUAL-ELEMENT and SINGLE-ELEMENT can be used for nearly any application.
• Auto probe recognition with Auto Zero or Manual Zero.
• Bar graph with user-set start end values providing highest resolution around the target thickness value.
• Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
• 64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
• Display Hi/Lo Alarm Limits with audible and visual indicators.
• Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (42–50 db).
• Measures Coatings up to 0.100"
• Metal housing provides strong protection against harsh environments.
• T-8071-0868 Probe to 1"-1MHz Single-Element Membrane Probe to measure Blow Holes in Thick PE Pipes and Fittings
• 2 Year Warranty, CE-Certified and includes NIST-Traceable Calibration Certificate.
• IP 65 Rated

Complete Kit

The TI-CMXDLP is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate, operating manual, Software, RS-232 output cable, RS-232 to USB adapter, software all in a foam-fitted carrying case.
