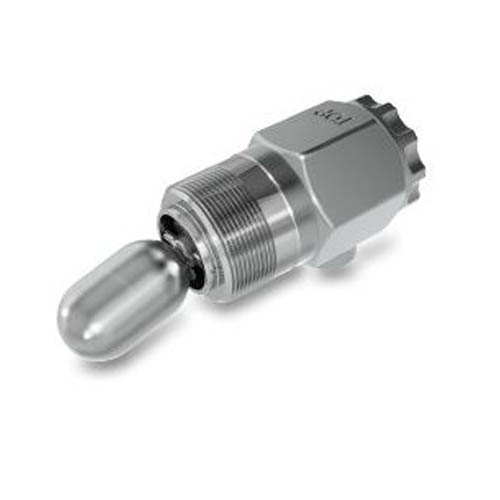

The MLS-015 Liquid Level Switch features a clean magnet design, which virtually eliminates iron filing accumulation onto the magnet. The Seal-Free construction is designed for harsh gas compressor scrubber applications. With a process connection of 1-1/2" NPT, this stainless steel level switch is rated for 2000 psi working pressure and operates in 0.50 specific gravity or heavier fluids.

The MLS-015 is a "close" replacement, but NOT an exact replacement, for the L1100. Murphy recently discontinued manufacturing the L1100 and suggests using the MLS-015 in its place. CAUTION: If you are replacing your old L1100, be sure to check the MLS-015 specifications against your application prior to purchase.

Murphy's MLS Series Liquid Level Switches are float activated to operate an electrical SPDT reed switch for annunciation/pilot signal for indication of high level to an annunciator, controller or PLC. The MLS connects directly into the gas scrubber wall and can be used with a Murphy weld collar or Murphy external float chamber.

The MLS-015 features:

* Clean Magnet Design virtually eliminates iron filing accumulation onto the magnet

* Seal-Free Construction

* ANSI/ISA 12.27.01 compliant (Single Seal)

* Operates in 0.50 specific gravity or heavier fluids

* Designed for harsh gas compressor scrubber applications

* 304 cast equivalent SS body and 304 SS float

* Rated for 2000 psi (13.8 MPa) [138 bar] working pressure

* Trip on rising and falling without need to rotate body

* Electric model only available

* All models screw directly into the scrubber or can be mounted via a Murphy external float chamber

* CSA C/US Class I, Div. 1, Grp. B, C & D locations

* NACE MR0175 compliant

* Canadian Registration Number 0F01476.2
