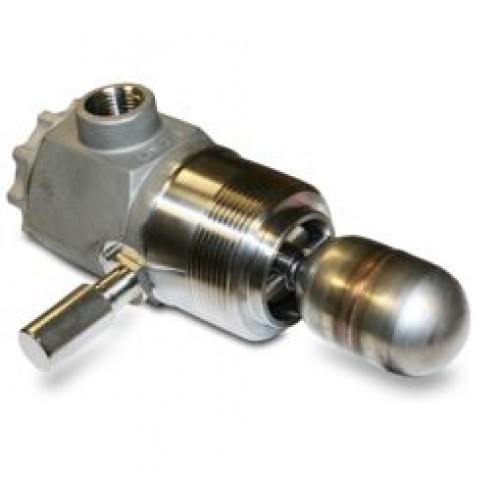

The MLS-020-TF Liquid Level Switch is float activated to operate an electrical SPDT reed switch for annunciation/pilot signal for indication of high level to an annunciator, controller or PLC. The MLS-020-TF connects directly into the gas scrubber wall and can be used with an FW Murphy weld collar or external float chamber.

The MLS-020-TF's process connection is 2 in. NPT. The test button tests for float function; the complete mechanism including the magnetic activation of the reed switch; and the wiring from the switch to the control panel.

Features of the MLS-020-TF include:

* Clean magnet design virtually eliminates iron filing accumulation on the magnet

* Seal-free construction

* ANSI/ISA 12.27.01 compliant (Single Seal)

* Push button to test functions

* Operates in 0.50 specific gravity or heavier fluids

* Designed for harsh gas compressor scrubber applications

* 304 cast equivalent SS body and 304 SS float

* Rated for 2000 psi (13.8 MPa) [138 bar] working pressure

* Trip on rising and falling without need to rotate body

* Electric model only available

* Screws directly into the scrubber, or can be mounted via an FW Murphy External Float Chamber

* CSA C/US Class I, Div. 1, Grp. B, C & D locations

* Canadian registration pending
