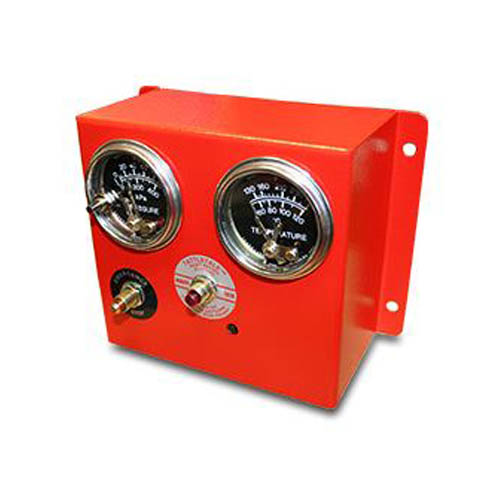

The WD300LV Swichgage? Shutdown Panel is the ideal control solution for a wide variety of diesel engines that have the fuel shut-off solenoid built into the injection pump.

The panel includes a Low Lube Oil Pressure Swichgage?, a High Coolant/Temperature Swichgage?, a 117PH Magnetic Switch and an emergency stop push button. The WD300LV does not include an SV Series Solenoid Fuel Shutoff Valve. The panel is a universal design, enclosed on the top, bottom and both sides. The back of the panel is open and flanged mounting brackets are on both sides.

20P Oil Pressure Swichgage?: 0-100 psi (0-689 kPa) [0-6.89 bar]; 1/8 NPT process connection.

20T Temperature Swichgage?: 130-250øF (54-121øC); 48 inch (1.2 m) capillary; 1/2-14 NPT process connection.

117PH Magnetic Switch

PB128S Emergency stop push button
