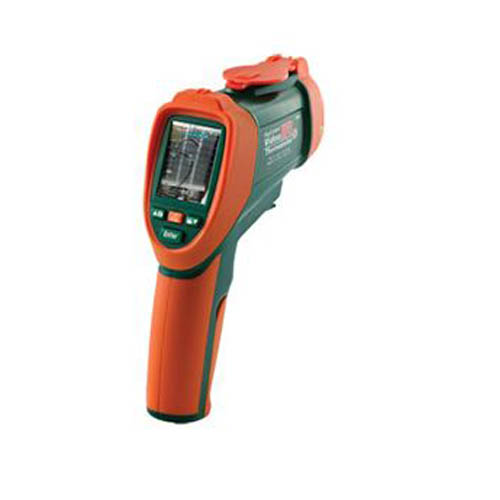

The OS-VIR50 video infrared thermometer is capable of making non-contact (infrared) and contact (thermocouple) temperature measurements. The built-in camera offers still image and video capturing functionality for documenting measurement locations. The meter includes a microSD card slot for offloading still images and video. The built-in laser pointer increases target accuracy while the backlit LCD and handy push-buttons combine for convenient, ergonomic operation. This meter is shipped fully tested and calibrated.

SPECIFICATIONS

Laser Convergence Distance: 127 cm (50")

Infrared Temperature Range: -50 to 2200°C (-58 to 3992°F)

Repeatability: ±0.5% or 1.8°F / 1°C

Basic Accuracy: ±(1% of rdg + 4°F/2°C) (31 to 212°F)

Max Resolution: 0.1°F/°C

Emissivity: 0.10 to 1.00 Adjustable

Field of View (Distance to Target): 50:1

Type K Temperature Range: -50 to 1370°C (-58 to 2498°F)

Air Temperature Range: 0 to 50°C (32 to 122°F)

Relative Humidity: 0 to 100% RH

LCD Display: 2.2" TFT 320 x 240 pixels

Camera: 640 x 480 pixels

Internal Memory

    Internal Flash: 49Mbyte

    MicroSD Card: Max 8 Gbytes

Power: Lithium ion rechargeable battery (included)

Battery Life: 4 hours (continuous) approx

Dimensions: 189 x 152 x 57 mm (7.4 x 6.0 x 2.2")

Weight: 494 g (17.4 oz)

• Built-in Camera offers still image and video capturing functionality for documenting
• Dual Laser Sighting and Fast 150 Millisecond Response Time
• Color Led Bargraph For Viewing Trends
• Type K Thermocouple Input
• Air Temperature and Relative Humidity Measurement
• MicroSD card for off loading Still images and Video
• Adjustable Emissivity Increases Measurement Accuracy for Different Surfaces
• Adjustable High/Low Set Points with Audible Alarm Alerts
• MAX/MIN/AVG/DIF Functions
• Trigger Lock Function for Continuous Readings
• USB Interface
• Auto Power-Off
• Double Molded Housing
