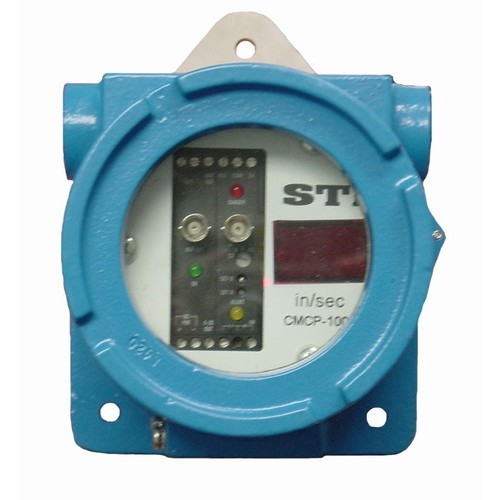

The CMCP1000 is a single channel Vibration Monitor with an integral accelerometer packaged in an explosion-proof housing that is suitable for NEC Division I hazardous areas. Designed to comply with rigid API670 standards, the CMCP1000 far exceeds the capabilities of competitive vibration switches.

In addition to the key features listed above, the CMCP1000 offers a buffered transducer output for detailed diagnostics and optional high-pass and low-pass filters to monitor specific frequency bands.

Explosion Proof

Solid State Reliability

Integral Sensor (Also Uses External Sensor)

Two Levels of Alarm with Relays

True “OK” Circuitry with Relay

Adjustable Time Delays

Trip Multiply

4-20mA Output

Remote Reset

Buffered Transducer Output

Bright LED Digital Readout

0-1.0 in/sec, 0-2.0 in/sec, 0-25 mm/sec or 0-50 mm/sec RMS Range
