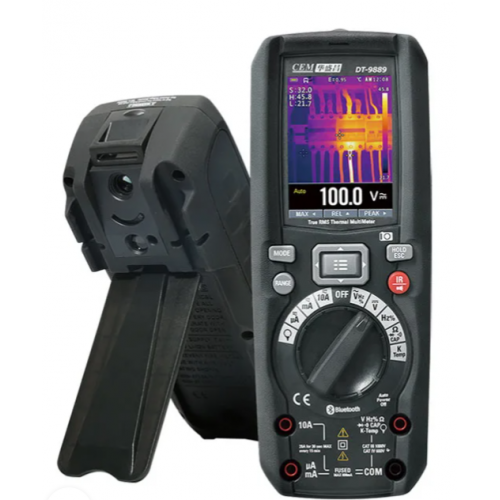

CEM DT-9889 Professional True RMS Industrial Digital Multimeter built-in Thermal Imager design, providing fast A/D converting sampling time, high accuracy, data logging and Trend Capture features. Advanced system platform permits smart multifunction such as updating software on line and PC calibration etc. Therm view software &cloud server support to transfer the measured data to the customer’s smartphone for edit and storage.

Features

Built-in Thermal Imager design quickly identifies hot spots without contact
240 x 320 2.8” TFT color LCD display
Large LCD display 6000 counts
Logging function with Trend Capture for easy review of logged data
Low pass filter for accurate measurement of variable frequency drive (VFD) signals
Long work time with li-ion battery
AC, AC+DC true-RMS measurements & 1kHz ACV, ACA bandwidth
A/D convert fast sampling time: 10 Times/sec.
Peak capture (records transients as fast as 500μs)
Min/Max/Average with Time stamp (records signal fluctuations)
80x80 Infrared resolution
Bluetooth BLE instant share function
Easy to view and analyze images quickly
Size(HxWxD): 195mm x 80mm x 58mm
Weight: 540g
