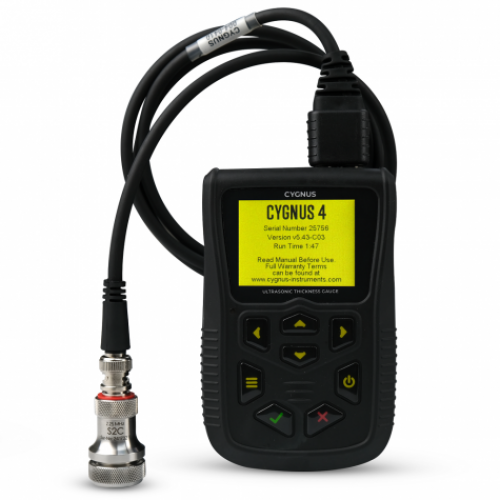

Cygnus 4 General Purpose - Ultrasonic Thickness Gauge

This robust thickness meter is truly simple to use. It has an intuitive menu and, thanks to the Multiple-Echo technique, it accurately measures metal thickness without removing protective coatings.

Key Features of the Cygnus 4 General Purpose Gauge

• Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies

• Deep Coat function ignores coatings up to 0.8 inch (20 mm) thick
• Simple, one-point calibration – no zeroing required
• Min/Max measurement limit functions
• Visual and vibrate alert
• Intuitive easy to use menu
• Large and bright front color LCD display
• Extremely rugged enclosure – shock and impact proof to US MIL STD 810G
• Environmental sealing (water and dust proof) to IP67 – US MIL STD 810G
• Can be upgraded to 4+ or 6+ at an additional cost.

Cygnus-Pioneered Multiple Echo Technique

• Uses three return echoes to give a truly accurate, error-checked metal thickness measurement – ignoring coatings up to 0.8 inch (20 mm).
• Accepted by all the major Classification Societies.

Package Included;

• Cygnus 4 gage
• Operating manual
• Neck strap
• Ultrasonic transducer
• Moulded transducer cable
• Accessory pouch, containing; 3 x AA batteries, blue couplant gel, 15 mm (or ½ inch) steel test block, spare membranes, membrane key, membrane couplant.
