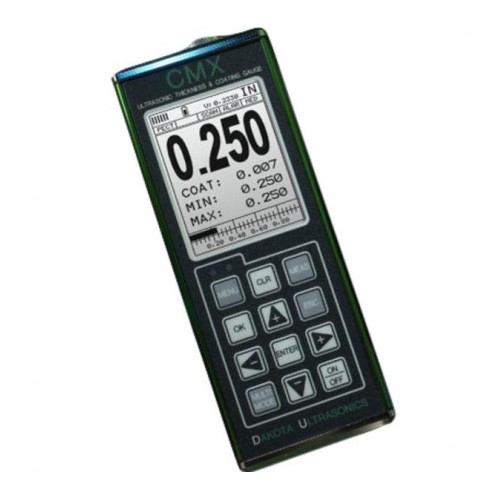

The new Dakota CMX v2 measures both coating and wall thickness quickly and accurately—from only one side. In addition, when switched to Pulse-Echo mode, the CMX automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting—without removing the coating.

Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

Five user-selected operating modes are included:

Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.

Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.

Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.

Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)

Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.013 to 2.540 mm). Range will vary slightly depending on the coating.

New Features in Version 2.0

High speed scan 200Hz
TDG (Time Dependent Gain)
Improved linearity tables (in all measurement modes)
110dB gain range
Setups can be backed up or restored using USB connection
Screen update rate (25Hz)
PRF (pulse repetition frequency 250Hz)
Line power available using USB-C to PC or standard power adapter

Features

Hardware AGC gain control for multiple echo and thru-paint measurement.
Multiple calibration options: One Point, Two Point, or selection from a Material List.
16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
CE Certified
2 year limited warranty
CMX comes complete with our Windows® PC software for transferring setup / configuration data to and from a PC.
Visual and audible alarm with hi and lo limit settings for specific application tolerances.
Includes NIST-Traceableb calibration certificate
