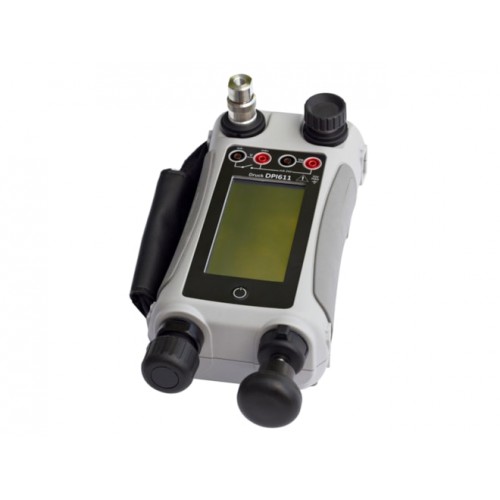

The DPI 611 pressure calibrator can generate from 95% vacuum to 300 psi (20 bar) pneumatic pressure. A simple selector lets users convert from vacuum to pressure and with a few stokes of the pump, generate the required pressure. Fine adjustment is made with the built-in volume adjuster and falling calibration points are achieved with the precision vent valve. Using advanced silicon technology, the digitally corrected pressure sensor achieves 0.0185% FS accuracy.

The DPI 611 is a simple-to-use and includes advanced features for automating calibration procedures, calculating errors and interfacing with PCs and calibration and maintenance systems. The DPI 611 is also capable of comprehensive electrical measurement and sourcing capability. The unique, simplified touch screen provides an easy-to-use interface while the choice of case material and precision molding ensures that the DPI 611 is both rugged and weatherproof.

Features

Fast, intuitive, dependable performance
50% smaller and 33% lighter than the DPI 610
Generates from 95% vacuum to 20 bar/300 psi pneumatic pressure
Achieves 0.0185% FS accuracy
Simplified, intuitive touch screen interface with application DASHBOARD, quick TASK selection and FAVORITES storage
Fast, three touch set-up for any application
Calculates PASS/FAIL errors, documents results and interfaces with calibration software
Quick automated procedures, error free digital data and software integration
