The GE Druck DPI620G Advanced Modular Multifunction Calibrator with HART Communicator is an easy to use, rugged, and highly accurate multifunction instrument for calibrating and maintaining process instrumentation. The DPI620G model is equipped with a HART communicator and provides world-class pressure measurement and generation. The calibrator offers simultaneous measurement and source capabilities for the setup, testing and calibration of most types of process instruments, including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners.

The modular design and functionality of the DPI620G means it can be expanded over time and tailored to applications as needs change. The calibrator comprises four system components to provide the multi-functionality to perform duties formerly requiring a wide range of different instruments.

A Flexible Modular System

The GE Druck DPI620G Genii Multifunction Calibrator comprises four system components to provide the multi-functionality to perform duties formerly requiring a wide range of different instruments. These system components are:

Click for larger image DPI620G Design

Re-Rangeable Pressure Measurement and Generation: DPI620G Calibrator shown with PV62X Pressure Station and PM620 Pressure Module, both sold separately

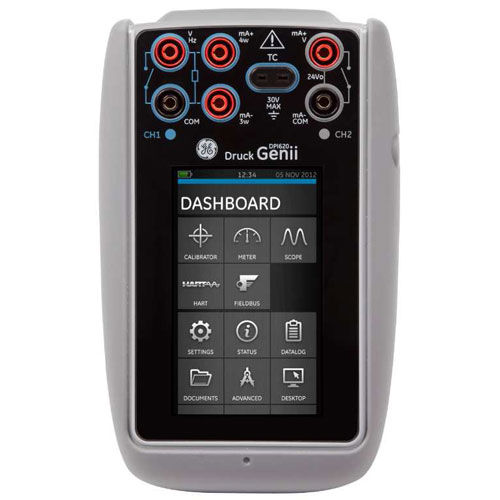

DPI620G - Genii Multifunction Calibrator with HART Communicator

PM620 - Interchangeable Pressure Modules (Sold Separately)

MC620 - Pressure Module Carrier (Sold Separately)

PV62X - Pressure Generating Stations (Sold Separately)

Product Features:

• Provides highest accuracy for measuring, sourcing and simulating electrical, frequency, temperature and pressure
• Logs up to 6 channels for simultaneous measurement and sourcing of mA, V, Ohms, frequency, pressure, RTDs and T/Cs, HART
• Calculates errors between inputs and outputs
• Large (4.3 in.) color LCD display with touchscreen and improved daylight readability
• Pressure system generates up to 1500 psi (100 bar) pneumatic and 15,000 psi (1000 bar) hydraulic pressures
• HART digital communication with complete device description libraries and internal modems
• Modular design for easy range expansion with interchangeable pressure modules (sold separately)
• UI Dashboard allows quick access to applications, including Calibrator, HART and Documenting
• Internal mA loop power and communicator power hubs
• 800 MHz Processor, 512 MB 800 MHz SDRAM, 4 GB internal flash memory
• IP55 rated and CE Marked
• Excels in multiple applications, including petrochemical, chemical, oil and gas, power, food, pharmaceuticals

Included ;

1 - Advanced Modular Calibrator with HART Communicator (DPI620G)

1 - Rechargeable Lithium Polymer Battery(IO620-BATTERY)

1 - Universal Mains Adaptor/Charger (IO620-PSU)

1 - AC Voltage Measurement Probe (IO620-AC)

1 - Set of Test Leads

1 - Calibration Certificate

1 - Quick Reference Guide
