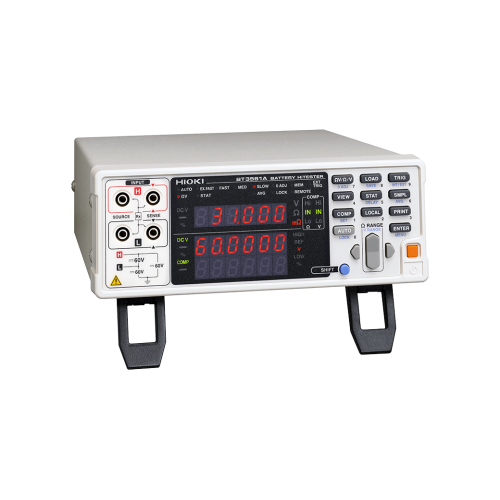

Fully automated production line testing of small cells for power motors or small packs of up to 60 V
Key Features
- Simultaneous measurement of internal resistance and open circuit voltage.
- Fully automated production line testing of small cells for power motors or small packs of up to 60 V.
- Measure from 0 Ω to 3.1 kΩ (minimum resolution 1 μΩ)
- Resistance measurement ranges: 30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ
- Measure from 0 V DC to ±60 V DC (minimum resolution 10 μV)
- Voltage measurement ranges: 6 V/60 V
- Equipped with LAN
