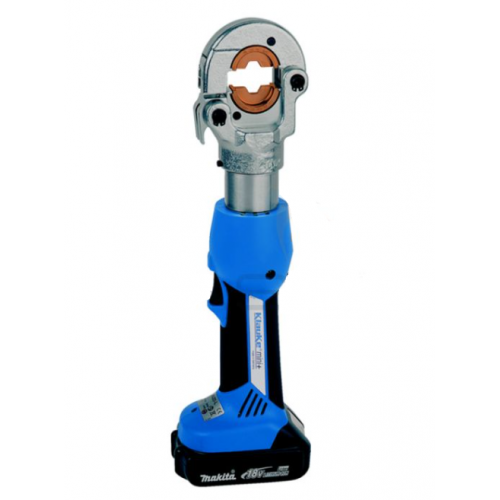

The Klauke EKM6022L has a large crimping range of up to 300 mm2 and an Automatic Retract Stop (ARS) function. The ARS function delivers positional control when making multiple crimpings. The slim crimping head makes the instrument an ideal solution when working in space-critical scenarios.

Key Features

Suitable for interchangeable dies, series 22, narrow crimping
Closed crimping head, flip top style, rotatable
Electronic control and monitoring of crimping operation
Integrated pressure measurement with visual and audible signals in case of failure
Evaluation function using optical interface and USB adapter
One-button operating concept for controlling all tooling functions
Ergonomic 2-component plastic housing with soft linings for comfortable and safe one-hand operation
Balanced centre of gravity for easy handling and effortless operations
LED for workplace illumination
High-performance 18V Lithium-ion battery with high capacity and extremely short charging time
High-performance motors for maximum operating speed
Quick motor stop for high user safety
Automatic retraction when crimping is complete
Manual retract in case of need
Automatic retract stop (ARS) for positioning control in case of multiple crimpings
Multi-function LED for maintenance control, charge level indicator of the battery and data transmission via USB adapter
Environmentally-friendly hydraulic oil, quickly biodegradable
