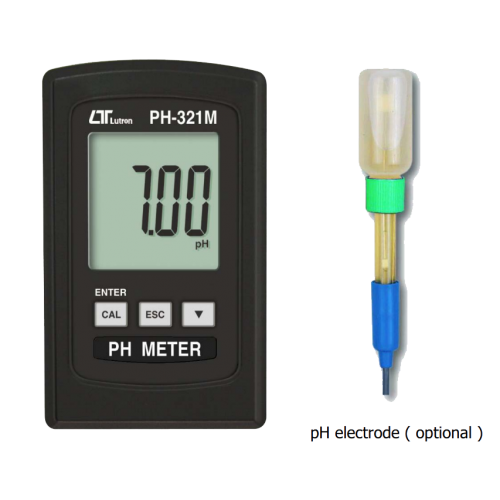

The PH-321M pH Monitor offers accurate and reliable pH measurements with a compact design, making it an essential tool for various applications in aquariums, laboratories, food processing, and more.
Exceptional Features of the PH-321M:
1. Economical Cost: Provides accurate pH measurements at an economical cost, making it accessible for general-purpose applications.
2. Auto Calibration: Supports automatic calibration for pH 4, pH 7, and pH 10, ensuring precise measurements.
3. Compact and Lightweight: Designed with a compact size and lightweight body, making it easy to carry and use in various environments.
4. Backlight LCD Display: Features a backlight LCD display, making it easy to read measurements even in low-light conditions.
5. Wide Application Range: Suitable for a wide range of applications, including aquariums, beverage industry, fish hatcheries, food processing, photography, laboratories, quality control, schools, colleges, swimming pools, and water conditioning.
Technical Specifications:
- Measurement Range: 0 to 14 pH
- Resolution: 0.01 pH
- Accuracy:
- ± 0.07 pH (pH 5 - pH 9)
- ± 0.1 pH (pH 4 - pH 10)
- ± 0.2 pH (pH 1 - pH 3.9, pH 10.1 - pH 13)
- Display: LCD size 31 mm x 31 mm with backlight
- Input Impedance: 10^12 ohms
- Temperature Compensation: Not necessary to make adjustment
- Sampling Time: Approximately 1 second
- Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
- Operating Humidity: Less than 80% RH
- Power Supply: DC 9V via optional external adapter
- Power Consumption: Approximately 11 mA
- Dimensions: 89 x 57 x 31 mm (3.5 x 2.2 x 1.2 inches)
- Weight: 117 g (0.26 lb)
Optional Accessories:
- pH Electrodes:
- PE-03: General purpose pH electrode with BNC connector
- PE-11: High quality pH electrode with BNC connector
- Buffer Solutions:
- PH-07: pH 7.0 buffer solution
- PH-04: pH 4.0 buffer solution
- Power Adapter:
- AP-9VA: DC 9V adapter
- Input voltage: 100 to 240 ACV, 50/60 Hz
- Output voltage: Regulation DC 9V/1 Amp. rating max
- Output plug: Round 2.5 mm dia. plug
- AP-GTU: Plug converter to convert the input plug of AP-9VA from the Germany type to USA type
