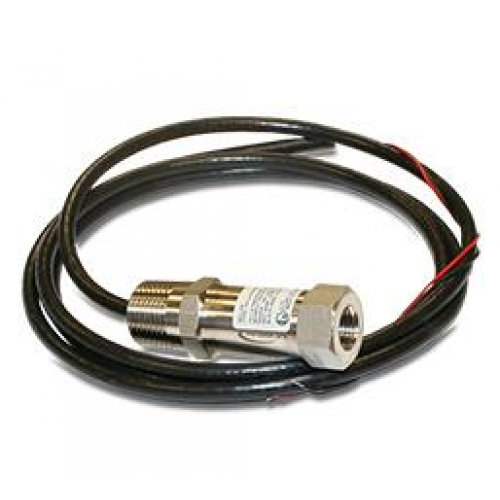

The PXT-K-15 pressure transmitter is a state-of-the-art instrument providing 4-20 mA, 2-wire output signal, and a pressure range of 0-15 psi (0-103 kPa) [0-1.03 bar]. This Piezoresistive Pressure Transmitter contains a transducer comprised of a piezoresistive silicon chip mounted on a glass-metal feedthrough header welded into a stainless steel housing and filled with silicone oil; the very thin laser-welded stainless steel isolation-diaphragm completes the front side. Media pressure is transferred from the stainless steel isolation-diaphragm, via the oil inside the cell, to the silicon measuring chip. This construction, combined with the advanced internal signalÿconditioning circuitry, results in a rugged instrument with extremely small temperature error and class-leading EMI/RFIÿresistance.

Applications: Compressors, Engines, Process Control, Liquid Level and Pumps.

FEATURES:

•  Process Connection: 1/4 NPT female with 7/8? Hex Nut.
•  Electrical Connection (PXT-K-15): 1/2? NPT MaleÿConduit connection with 60? long cable, vented
•  Wetted Parts: 316L stainless steel
•  Supply Voltage: 8 - 30 VDC (Typically 24 VDC)
•  CSA (c/us): Class I / II / III, Div 1 , Groups A-F T4
•  Class I / II / III, Div 2, Groups A-D,F,G T4

If you are currently using the PXT Series pressure transmitter, please use the cross reference chart to determine the appropriate PXT-K Series pressure transmitter replacement product. The downloadable PDF version is available below.
