Belt tension meter for fast and accurate measurement of belt tension

Memory for 750 measured values / graphic display / easy operation / multilingual menu / measurement in Hz and N

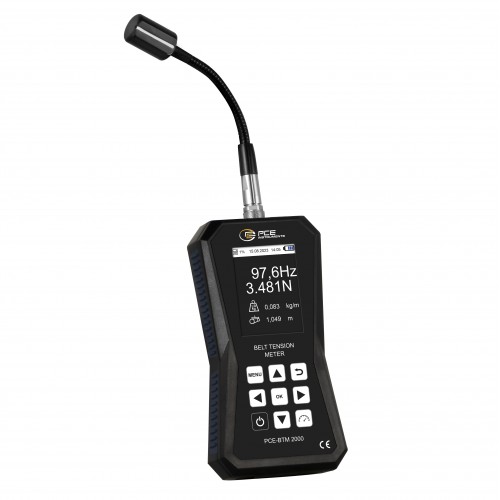

The belt tension meter is an optically measuring maintenance tool for determining the belt tension force. This belt tension meter consists of a display device and a sensor head attached on a semi-flexible gooseneck. The advantage of the gooseneck is that the sensor head can be flexibly positioned. Due to the mobility of the gooseneck, the sensor can measure the strand force even in hard to reach places. The belt tension measuring device measures the

Highlights

- Measurement of the oscillation frequency of the drive belt
- Intuitive controls
- Calculation of the tension force
- Display of the belt tension in N
- 6 menu languages
- Memory for 750 measured values
- Sensor on gooseneck
- Input of belt length and belt mass

Specification

Measuring range	10 ... 900 Hz
Accuracy	± (1% of rdg. + 4 digits)
Repeatability accuracy	± 1 Hz
Resolution	<100 Hz: 0.1 Hz
	>100 Hz: 1 Hz
Belt length	max. 9,999 m
Belt mass	max. 9,999 kg/m
Sensor length	16 cm / 6,2 in
Memory	750 measured values
	15 sets of 50 measuring points
Menu languages	German, English, Spanish,
	French, Italian, Dutch
Power supply	3 x 1.5 V AA batteries
Operating conditions	0 ... 50 °C / 32 ... 122 °F; max. 95 % R.H.
Storage conditions	-20 ... 65 °C / -4 ... 149 °C; max. 95 % R.H.
Dimensions	150 x 80 x 38 mm / 5.9 x 3.1 x 1.4"
Weight	ca. 200 g / 7 oz incl. batteries
