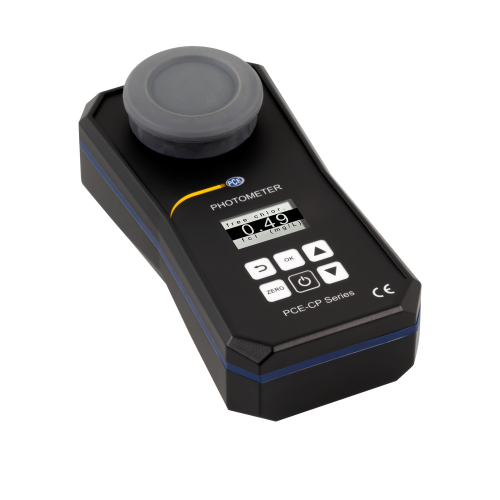

Photometer PCE-CP 30
Multi-parameter photometer with Bluetooth interface / PC software / Cloud service / Cross-system synchronization of measured values / Up to 13 selectable parameters / For measuring e.g. pH, alkalinity, chlorine, cyanuric acid / Storage of measured values
The multi-parameter photometer is a mobile measuring device for liquid analysis. This means that the most varied of measurements can be carried out with the multi-parameter photometer. With this multi-parameter photometer, for example, it is possible to determine alkalinity, chlorine, cyanuric acid or the pH value. In order to carry out a measurement with the multi-parameter photometer, a water sample of 10 ml must be placed in a cuvette. The LED built into the multi-parameter photometer generates a test light in the wavelength ranges of 503 nm, 570 nm and 620 nm. A photodiode now recognizes the value to be measured based on the light transmission of the sample.
Each measurement is automatically saved by the multi-parameter photometer. The stored measured values can then be read out, for example, via a mobile device via the Bluetooth interface built into the multi-parameter photometer. A free app is available to analyze the measured values from the multi-parameter photometer. It is also possible to establish a Bluetooth connection between the multi-parameter photometer and a computer. Free software is also available for this, with which the measurement data can be analyzed. As another special feature of the multi-parameter photometer, the measurement data can be uploaded to a cloud using both variants and accessed from anywhere. This service for the multi-parameter photometer is also free of charge.
Highlights
- Up to 13 selectable parameters
- Bluetooth connection with app
- Exchangeable and lockable cuvette
- 503 nm / 570 nm / 620 nm LED
- Automatic shutdown when inactive
- Many different menu languages
- Light detector: photodiode
- Cuvette: 36 x ø 21 mm / 3.6 x ø 2.1 cm (10 ml)
Specification
| Alkalinity | |
| Measuring range | 0… 30 mg / l |
| 30… 60 mg / l | |
| 60… 100 mg / l | |
| 100… 200 mg / l | |
| Accuracy | 3 mg / l |
| 7 mg / l | |
| 12 mg / l | |
| 18 mg / l | |
| Resolution | 1 mg / l |
| Chlorine | |
| Measuring range | 0.00 ... 2.00 mg / l |
| 2.00 ... 3.00 mg / l | |
| 3.00 ... 4.00 mg / l | |
| 4.00 ... 8.00 mg / l | |
| Accuracy | 0.10 mg / l |
| 0.23 mg / l | |
| 0.75 mg / l | |
| 1.00 mg / l | |
| Resolution | 0.01 mg / l |
| Cyanuric acid | |
| Measuring range | 0… 15 mg / l |
| 15… 50 mg / l | |
| 50… 120 mg / l | |
| 120… 160 mg / l | |
| Accuracy | 1 mg / l |
| 5 mg / l | |
| 13 mg / l | |
| 19 mg / l | |
| Resolution | 1 mg / l |
| pH | |
| Measuring range | 6.50 ... 8.40 pH |
| Accuracy | 0.11 pH |
| Resolution | 0.01 pH |
| Total hardness | |
| Measuring range | 0… 30 mg / l |
| 30… 60 mg / l | |
| 60… 100 mg / l | |
| 100… 200 mg / l | |
| 200 ... 300 mg / l | |
| 300 ... 500 mg / l | |
| Accuracy | 3 mg / l |
| 5 mg / l | |
| 10 mg / l | |
| 17 mg / l | |
| 22 mg / l | |
| 58 mg / l | |
| Resolution | 1 mg / l |
| Calcium hardness | |
| Measuring range | 0… 25 mg / l |
| 25… 100 mg / l | |
| 100 ... 300 mg / l | |
| 300 ... 500 mg / l | |
| Accuracy | 8 mg / l |
| 22 mg / l | |
| 34 mg / l | |
| 45 mg / l | |
| Resolution | 1 mg / l |
| Active oxygen | |
| Measuring range | 0.0 ... 5.0 mg / l |
| 5.0… 15.0 mg / l | |
| 15.0 ... 25.0 mg / l | |
| 25.0 ... 30.0 mg / l | |
| Accuracy | 0.5 mg / l |
| 1.3 mg / l | |
| 3.8 mg / l | |
| 5.0 mg / l | |
| Resolution | 0.1 mg / l |
| Chlorine dioxide | |
| Measuring range | 0.00 ... 2.00 mg / l |
| 2.00 ... 6.00 mg / l | |
| 6.00 ... 10.00 mg / l | |
| 10.00 ... 11.40 mg / l | |
| Accuracy | 0.19 mg / l |
| 0.48 mg / l | |
| 1.43 mg / l | |
| 1.90 mg / l | |
| Resolution | 0.01 mg / l |
| Bromine | |
| Measuring range | 0.0 ... 2.5 mg / l |
| 2.5… 6.5 mg / l | |
| 6.5 ... 11.0 mg / l | |
| 11.0 ... 13.5 mg / l | |
| Accuracy | 0.2 mg / l |
| 0.6 mg / l | |
| 1.7 mg / l | |
| 2.3 mg / l | |
| Resolution | 0.1 mg / l |
| Ozone | |
| Measuring range | 0.00… 1.00 mg / l |
| 1.00 ... 2.00 mg / l | |
| 2.00 ... 3.00 mg / l | |
| 3.00 ... 4.00 mg / l | |
| Accuracy | 0.07 mg / l |
| 0.17 mg / l | |
| 0.51 mg / l | |
| 0.68 mg / l | |
| Resolution | 0.01 mg / l |
| Hydrogen peroxide - small measuring range (LR) | |
| Measuring range | 0.00 ... 0.50 mg / l |
| 0.50… 1.50 mg / l | |
| 1.50 ... 2.00 mg / l | |
| 2.00 ... 2.90 mg / l | |
| Accuracy | 0.05 mg / l |
| 0.12 mg / l | |
| 0.36 mg / l | |
| 0.48 mg / l | |
| Resolution | 0.01 mg / l |
| Hydrogen peroxide - large measuring range (HR) | |
| Measuring range | 0… 50 mg / l |
| 50… 110 mg / l | |
| 110… 170 mg / l | |
| 170… 200 mg / l | |
| Accuracy | 5 mg / l |
| 6 mg / l | |
| 11 mg / l | |
| 13 mg / l | |
| Resolution | 1 mg / l |
| PHMB (polyhexanide) | |
| Measuring range | 5… 60 mg / l |
| Accuracy | 5 mg / l |
| Resolution | 1 mg / l |
| Urea | |
| Measuring range | 0.00 ... 0.30 mg / l |
| 0.30… 0.60 mg / l | |
| 0.60… 1.00 mg / l | |
| 1.00… 1.50 mg / l | |
| 1.50 ... 2.50 mg / l | |
| Accuracy | 0.05 mg / l |
| 0.06 mg / l | |
