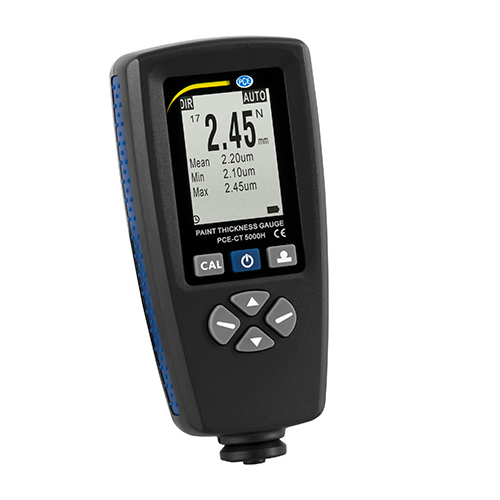

PCE-CT 5000H Coating Thickness Gauge

Non-destructive coating and dry film thickness (DFT) measuring device for use on ferrous (Type F) and non-ferrous (Type N) metal substrates

PCE-CT 5000H is a coating thickness measuring instrument used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The coating thickness gauge automatically detects the type of metal to be measured. The PCE-CT 5000H coating thickness gauge uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.

This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the coating thickness gauge to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.

- Designed for non-destructive testing and inspection

- Measures coating thickness on Fe and nFe metals

- Displays measuring units in μm, mm or mils

- Saves up to 2000 measurements to internal memory

- Practical V-groove on the measuring head

- One- to four-point and zero calibration

- Comfortable one-handed operation

- Programmable alarm limits

- High measuring range

- High measuring accuracy

- Automatic shutdown

- Optional ISO calibration certificate available for purchase separately - see accessories tab for details
