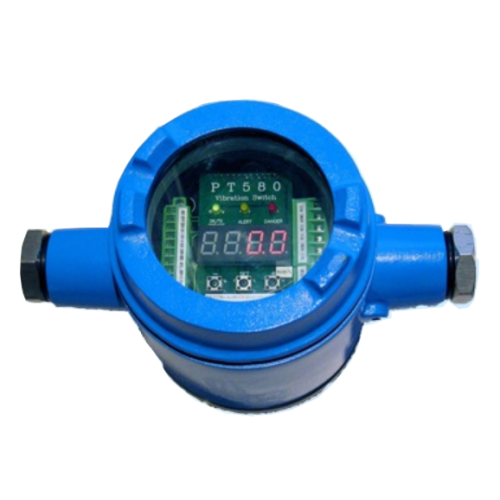

The PT580 Digital Vibration Switch is designed to be the “one stop shop” for all vibration switch applications. The PT580 is fully programmable, suitable for harsh environments and hazardous areas. It has a universal mounting feature, wide operating temperature range, dual alarms, 4-20mA output, Modbus communication, and works with an internal or a remote sensor.

Futures

The first digital vibration switch
Direct replacement for mechanical switches
with universal mounting plates and studs
Fully programmable
4-20mA output and Modbus
Dual alarms with relays or triacs
Works with internal or external sensor
“Smart Design” universal power supply
Wide operating temperature range of -40°C to +85C° (-40°F to +185°F)
NEMA 4X, IP65 environmental rating
Hazardous area approvals: CSA, CE, ATEX, PCEC,TR CU
Additional API 670 features: trip-multiply, bypass, programmable alarm delay etc.
