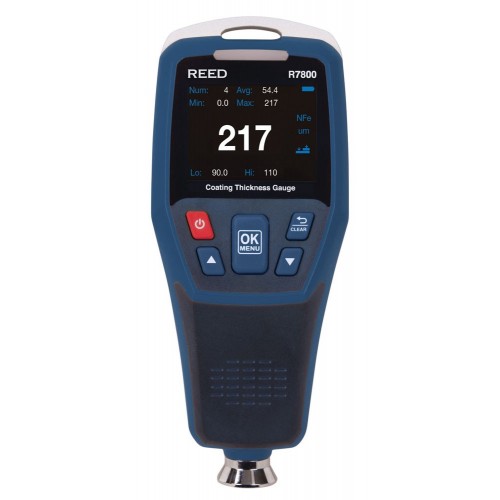

REED R7800

This coating thickness gauge is designed for non‐invasive coating thickness measurements. The R7800 features zero or two point calibration, user adjustable high/low alarms and a USB interface to further analyse results in the included software.

Features

Automatically detects ferrous and non-ferrous substrates

Integral probe measures non-magnetic and non-conductive coatings on steel substrates

Easy-to-read color LCD display

360° screen rotation allows users to view measured readings from any angle

Durable gauge and probe construction

Zero and two-point calibration ensures measurement accuracy

Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails

Tri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)

Internal memory stores up to 500 groups of data

View stored data, charts or real-time measurement with software

Low battery indication and auto shut off

REED R7800 Specifications

Measuring Range	0 to 1250μm 0.1 to 49.2mils
Accuracy	0 to 1250μm: ±3% +1μm 0 to 49.21mils: ±3% +0.04mils
Resolution	0 to 99.9μm: 0.1μm 100 to 1250μm: 1μm 0 to 4.99mils: 0.01mils 5.0 to 49.2mils: 0.1mils
Measurement Modes	Single and Continuous
Display	4-digit color LCD display
Resolution	320 x 240 pixels
Backlit Display	Yes (5 levels)
Min/Max/Average Readings	Yes
Minimum Curvature Radius	5mm (196.85mils)
Minimum Area Diameter	20mm (787.40mils)
Minimum Substrate Thickness	0.5mm (19.69mils)
Auto Shut-Off	Yes (After 5 minutes)
Low Battery Indicator	Yes
Power Supply	2 x AA Batteries
Internal Memory	Yes (Up to 500 groups)
PC Connectivity	USB Cable
Software	Yes
Software OS Compatibility	Windows 7/8/10/11
Product Certifications	CE
Refresh Rate	0.5 seconds (continuous mode)
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Operating Humidity Range	≤80%RH
Dimensions	5.9 x 2.6 x 1.38" (152 x 65 x 35mm)
Weight	6.35oz (180g)
