REED R8500 Offers

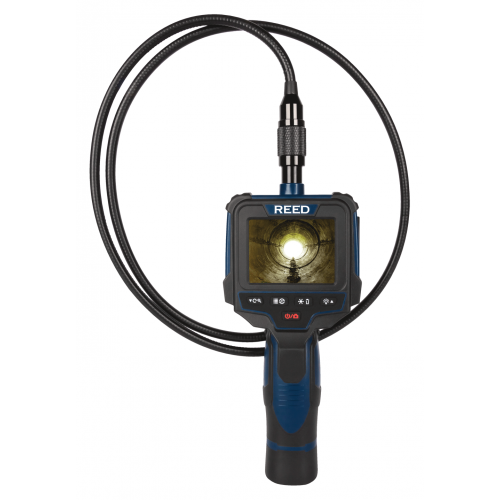

This high resolution video inspection camera features a 39" (1m) gooseneck cable with 8mm camera. The R8500 is capable of saving images and recording video on an external memory card (sold separately). The R8500 includes a camera mountable magnet, hook and mirror to assist with specific applications.

Features

Camera and video functions save high resolution images and video

Comfortable pistol grip design

High resolution 2.7" color LCD monitor

8mm waterproof (IP67) camera head

Gooseneck cable retains configured shape

Cable expandable up to 30ft. (~9m) with extensions (optional)

Six high visibility LED lights provide illumination in dimly lit environments

Expandable memory up to 32Gb (SD card sold separately)

Mirror rotation and Picture-in-Picture functions

Low battery indicator and auto shut off

REED R8500 Specifications

Camera
Lens Sensor Resolution	640 x 480
Camera Diameter	0.31" (8mm)
Short Distance Focus	1.18 to 3.15" (3 to 8cm)
Depth of Field	10mm to infinity
Viewing Angle	30mm to 80mm
General Specifications
Display	2.7" Color TFT LCD
Display Resolution	320 x 240
LCD Brightness Adjustment	Yes (12 levels)
Frames per Second (FPS)	30
Standard Gooseneck/Cable Length	39" (1m)
Rotate Display	Yes (180°)
Playback	Photo (JPEG) and Video (AVI)
Digital Zoom	6x
Memory	SD Card (up to 32Gb)
Picture-in-Picture Mode	Yes
Time and Date Stamp	Yes
Data Output	USB / SD Card
Camera LEDs	Yes (6 white LEDs)
Camera LED Brightness Adjustment	Yes (12 levels)
Low Battery Indicator	Yes
Power Supply	4 AA Batteries
Auto Power Off	Yes (Adjustable 5, 10, 15, 20min)
Product Certifications	CE, IP67
Operating Temperature	-4 to 158°F (-20 to 70°C)
Storage Temperature	-4 to 158°F (-20 to 70°C)
Dimensions	9 x 3.5 x 1.7" (230 x 90 x 42mm)
Weight	7.4oz (210g)
