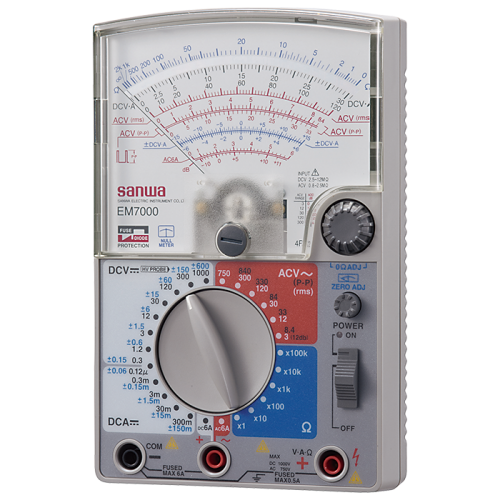

SANWA EM7000 Analog Multitesters FET Electronic Tester

High sensitivity for measurement of lower capacitance

• High-sensitivity FET electronic tester with high input resistance (2.5M - 12MΩ for DCV) and 0.12μA range (DC current)
• Frequency response against 40Hz to 1MHz of sine wave (AC low voltage)
• Measurement of P-P value (Peak to Peak value) of square wave pulse (duty cycle 20% or higher)
• Wide range resistance measurement from 0.2Ω to 200MΩ
• ※Zero adjustment needs to be performed before measurement, since the instrument is an electronic tester.
