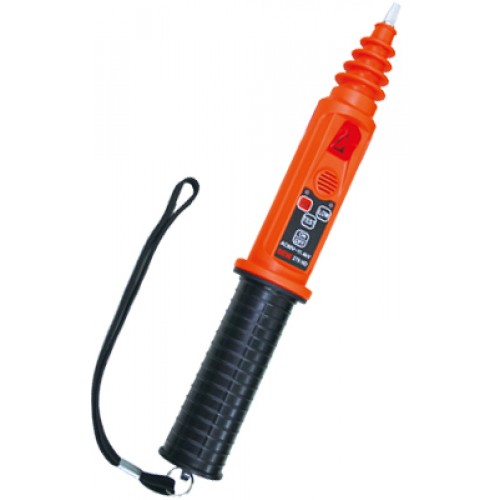

| Type | High and low voltage detector |
|---|
| Working voltage range | 80V~11.4kV AC |
|---|
| Frequency | Both 50Hz and 60Hz |
|---|
| Insulation resistance | 100MΩ or more between the contact tip and the grip |
|---|
| Dielectric strength | 20kV for 3 minutes between the contact tip and the grip |
|---|
| Leakage current | 100uA or less on dielectric strength |
|---|
| Operation starting voltage (exposed live part) | Low voltage: 65±15V
High voltage: 1700±200V |
|---|
| Operation status | Sound emission:
50dB or more (2m apart) |
|---|
| Operating temperature range | 0°C ~ 40°C |
|---|
| Structure | Waterproof structure, equivalent to IP66 |
|---|
Weight
(battery included) | 150±10g |
|---|
| Power source | 1.5V (AAA) x 2 |
|---|
| Safety standard | EN 61326-1 |
|---|
