FEATURES

• Microprocessor-controlled.
• Four insulation test voltages.
• Insulation resistance; auto ranging on all ranges.
• Bargraph indicates test voltage; rise and decay can be observed during tests.
• Visual and audible warning if external voltage is present.
• Fully protected: crow bar.
• Carry case.
• EEPROM calibration.

SPECIFICATIONS

Test voltage (DC V)	1kV / 2.5kV / 5kV / 10kV
Measuring ranges (Auto-Ranges)	0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
Accuracy	±3% rdg
Output power limit	50uA to 100uA (1W)
Live warning	> 500V AC
Operation temperature	0°C to 40°C
Operation-humidity	85% Max. relative humidity
Dimensions	330(L) × 260(W) × 160(D)mm
Weight (battery included)	Approx. 3600g
Power source	1.5V “C”× 8 Alkaline batteries
Safety standard	EN 61010-1 EN 61326-1

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating     Bad           Good

Captcha

Enter the code in the box below

Continue

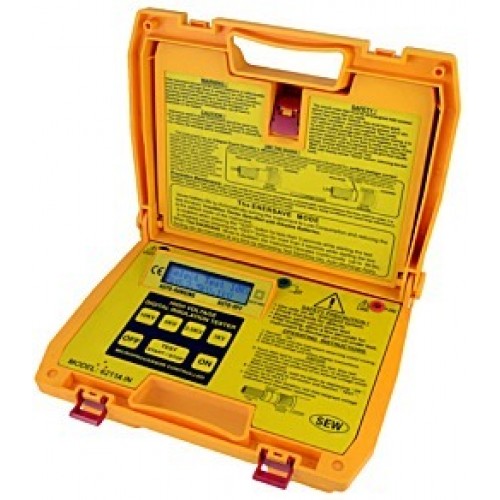

SEW 6211A IN DIGITAL HIGH VOLTAGE INSULATION TESTERS

• Brand: SEW
• Product Code: 6211A IN
• Availability: Pre-Order

• Rp.0
