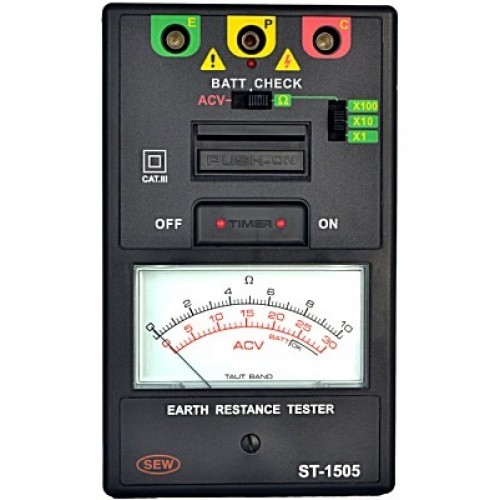

• SEW ST-1505 3 WIRE EARTH RESISTANCE TESTERS

FEATURES

  • High quality Taut Band movement.
  • Capable of measuring earth resistance and earth voltage.
  • The timer operates automatically for about three to five minutes when the “PUSH BUTTON SWITCH” and “TIMER ON BUTTON” are pressed together.
  • This will keep test “ON” for the duration of the timer.
  • Battery check function.
  • Calibration performed with supplied test leads.

SPECIFICATIONS

Measuring rangesEarth resistance
0-10Ω / 0-100Ω / 0-1000Ω
Earth voltage 0-30 Vac (40-500Hz)
AccuracyEarth resistance ±3% of full scale
Earth voltage ±2.5% of full scale
Measuring systemEarth resistance by constant current
inverter 820 Hz, 2mA approx.
Open circuit indicationLED will be unlit
Dimensions163(L) × 100(W) × 50(D)mm
Weight
(battery included)
Approx. 460g
Power source1.5V (AA) × 6
Safety standardsEN 61010-1 CAT II 30V
