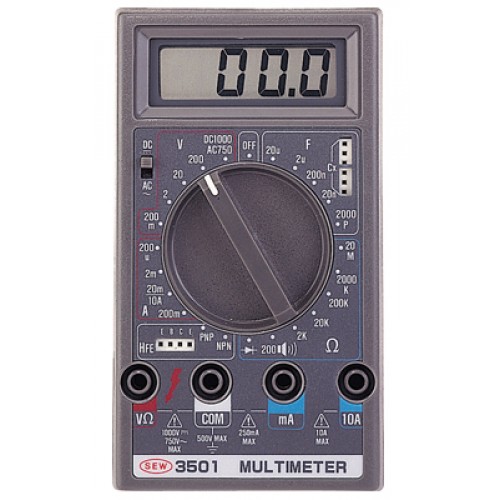

• SEW ST-3501 [ST3501] DIGITAL MULTIMETERS

FEATURES

  • Display: 3½ digit liquid crystal display (LCD) with max. reading of 1999.
  • Polarity: Automatic, (-) negative polarity indication.
  • Zero Adjustment: Automatic.
  • Over Range Indication: Highest digit of (1) or (-1) is displayed.
  • Low Battery Indication: The (BAT) is displayed when the battery voltage drops below the operating voltage.
  • Measurement Rate: 3 measurements per second, nominal.
  • Operating Temperature: 0°C to ±50°C, 0-70% RH.
  • Storage Temperature: -20°C to +60°C, 0-80% RH, with battery removed.
  • Accuracy: Accuracy specifications at 23±5°C, less than 75% RH.
  • Power: Single, 006P 9 volt battery
  • Dimensions: 128(L)×72(W)×33(D)mm.
  • Weight: Approx .200g

SPECIFICATIONS

DC Voltage

․Input impedance : 10MΩ

RangesResolutionAccuracyOver voltage Protection
200mV100nV±(0.5%rdg+1dgt)DC 500V
AC 350V
2V1mV
20V10mVDC 1200V
AC 800V
200V100mV
1000V1V
AC Voltage

Input impedance : 10MΩ

RangesResolutionAccuracyOver voltage Protection
200mV100μV45 Hz to 400 Hz
±(1.2%rdg+4dgt)
DC 500V
AC 350V
2V1mV
20V10mVDC 1200V
AC 800V
200V100mV
1000V1V
DC Current

Overload Protection0.8A(250V) fast blow fuse

RangesResolutionAccuracyOver voltage Protection
200μA100nA±(1.0%rdg+1dgt)325mV max
2mA1μA
20mA10μA
200mA100μA
10A10mA±(2.0%rdg+3dgt)700mV max
AC Current

Overload Protection0.8A(250V) fast blow fuse

RangesResolutionAccuracy
45 Hz to 400 Hz
Over voltage Protection
200μA100nA±(1.2%rdg+1dgt)325mV max
2mA1μA
20mA10μA
200mA100μA
10A10mA±(2.0%rdg+3dgt)700mV max
Resistance
RangesResolutionAccuracyMax test currentMax open circuit voltage
200Ω0.1Ω±(1.0%rdg+3dgt)3mA3.2V
2kΩ1Ω±(0.8%rdg+1dgt)250uA
50uA
5uA
500nA
0.3V
200kΩ10Ω
200kΩ100Ω
2MΩ1kΩ
20MΩ10kΩ±(3.0%rdg+1dgt)50nA
Capacitance
RangesResolutionAccuracyOver voltage Protection
2000pF1pF±(3%rdg+10dgt)500mV
400Hz
20nF10pF
200nF100pF
2uF1nF
20uF10nF
