FEATURES

• High quality Taut Band movement.
• Easy to read 3-color scale for mistake proof reading.
• Mirror scale: makes reading pointer easy.
• Safety features on all ranges.
• Safety features: safety fused and safety “OFF” position.
• dB measurement.
• Built-in stand makes reading and measuring easy.

SPECIFICATIONS

DC Voltage

Ranges	0.25 / 1 / 2.5 / 10 / 50 / 250 / 1000V
Accuracy	±2% of full scale
Sensitivity	50kΩ / V

AC Voltage

Ranges	2.5 / 10 / 50 / 250 / 1000V
Accuracy	±3% of full scale
Sensitivity	10kΩ / V
Decibelmeter	-20 to 62dB 0dB=1mW / 600Ω Direct Scale:-20 to +10dB

DC Current

Ranges	25uA/1mA/25mA/500mA, 10A(on separate input)
Accuracy	±2% of full scale
Sensitivity	250mV

AC Current

Ranges	10A
Accuracy	±3% of full scale

Resistance

Ranges	R × 1          0.2 to 20kΩ R × 10        2 to 200kΩ R × 100      20 to 2MΩ R × 1000    200 to 20MΩ
Accuracy	±3% of full scale

GENERAL

Dimensions	160(L) × 100(W) × 45(D)mm
Weight (battery included)	Approx. 380g
Power source	1.5V (AA) × 2
Safety standard	EN 61010-1 CAT III 600V EN 61326-1

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating     Bad           Good

Captcha

Enter the code in the box below

Continue

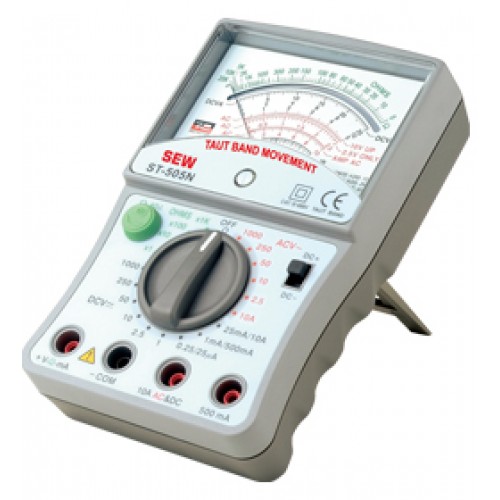

SEW ST-505N [ST505N] ANALOGUE MULTIMETERS
