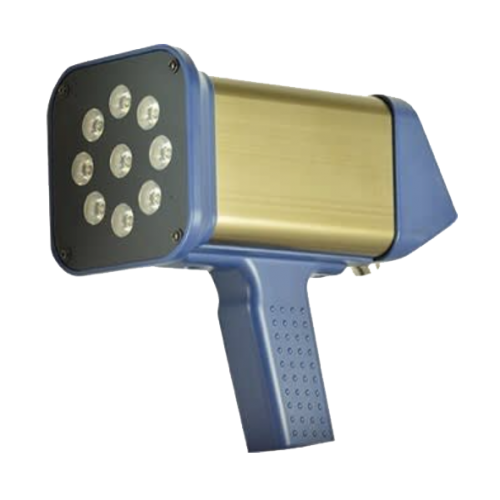

SHIMPO ST-320BL-1 Offers

Utilizing super bright high-powered black light CREE LED lamps, these stroboscopes are perfect for UV ink printing applications. The ST-320BL's LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. The unit can work off user adjusted flash frequency or from a remote sensor's signal which will automatically adjust to corresponding process fluctuations.

Features

• Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application
• Long-life Black Light LED operation for UV ink applications
• Adjustable Flash Pulse duration achieves sharper images for detailed inspection
• Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or "drifting" images
• Input sensor trigger function allows process machinery to control flash rate
• Delay time adjustment combined with leading or trailing edge activation simplifies process set-up when using external signal input
• x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning
• 1/4-20 UNC connection for permanent mount applications (remove trigger handle)

Applications

The ST-320BL is designed for speed and frequency measurements in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical and medical industries in various applications.
