Testo 310 (2nd Gen) Flue Gas Analyser Printer Kit

The Teso 310 (2nd Gen) Flue Gas Analyser combines a domestic standard gas analyser with an infrared printer that allows you to document your results to clients and customers.

The Testo 310 is an entry level Flue Gas Analyser designed specifically to meet the needs of the domestic service engineer. Combining simple functions with a high level of accuracy, the Testo 310 is ideal for performing all the basic measurements on heating and boiler systems.

Testo 310 Flue Gas Analyser Printer Kit Features

• Integrated, kink resistant hose to eliminate leaks
• Auto-zeroing of gas sensor in only 30 seconds after switching on
• Up to 10 hours running time, with charging via USB
• Integrated magnets on rear for easily fixing the unit to boilers
• Condensate trap can be quickly and simply emptied
• Two line display and clear menu structure on backlit screen
• Measures CO, O2, Ambient CO, Flue Gas Temperature, Ambient Temperature, Draught, Pressure, Efficiency, and Flue Gas Loss
• Supplied with a printer

Setting a new standard in reliable combustion tuning, the Testo 310 flue analyser offers quick and simple operation with intuitive navigation of testing functions and direct selection of desired measurements. The backlit display clearly shows readings, menus and descriptions of the stored fuel types to show a complete picture of the combustion process.

The gas sensors of the Testo 310 measure the exact oxygen and carbon monoxide content as well as the flue gas and ambient temperature. From these readings, parameters including CO2 value, boiler efficiency and flue gas loss can all be calculated.

The Testo 310 Domestic Flue Gas Analyser is ideal for the installation of new boilers, gas water heaters, low temperature boilers and condensing boilers as well as performing safety checks and fine tuning existing combustion systems in domestic environments.

Testo Part Number: 0563 3107

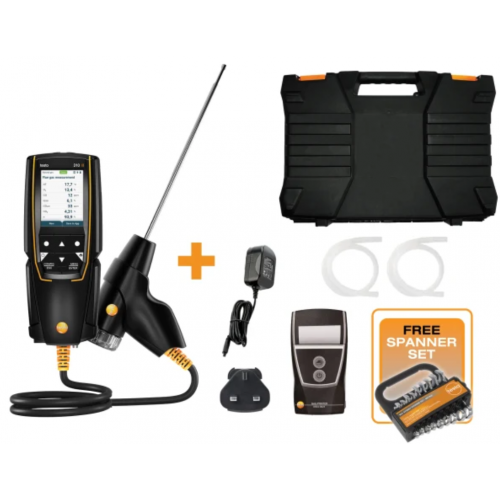

What's In The Box?

• Testo 310 (2nd Gen) Flue Gas Analyser
• Flue Gas Probe
• 180mm Cone
• Silicone Tube for Pressure Measurement
• Power Supply with Cable
• Particle Filter
• USB-C Cable
• Battery
• Calibration Protocol
• Bluetooth Printer
• Thermal Paper
• Case
