High accuracy and wide range makes the 1071 capacitance decade box suitable for applications in industry and education.
It is both compact and robust, housed in a metal case that provides complete screening, with a protective rubber cover to guard the unit against everyday wear and tear.
The 7-digit thumbwheel switch enables simple and precise setting of the required capacitance value.
Ylear Visual Indication: To make selecting and reading the setting easy the 1071 incorporates colour coded digits: μF - red, nF - white, pF - yellow.
Futures ;
- 10 pF to 100 μF
- 1 % accuracy
- In-line readout
- Colour coded digits
- Safety terminals
- Bi-polar working
- Supplied with protective cover
Safety Terminals
The 1071 connections are via safety terminals that are compatible with standard plugs, 4 mm shrouded plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.

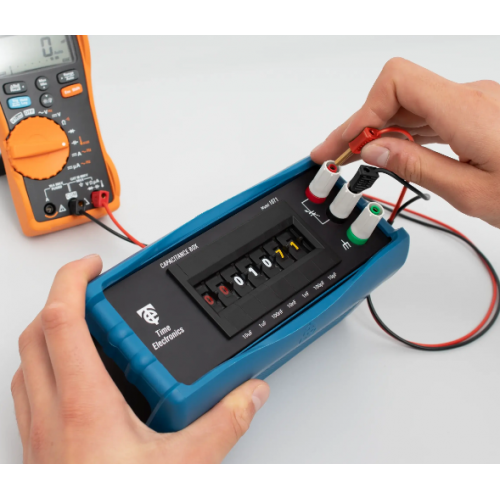

Time Electronics 1071 Capacitance Decade Box (10pF - 100uF)
- Brand: Time Electronics
- Product Code: 1071
- Availability: Pre-Order
-
Rp.0
