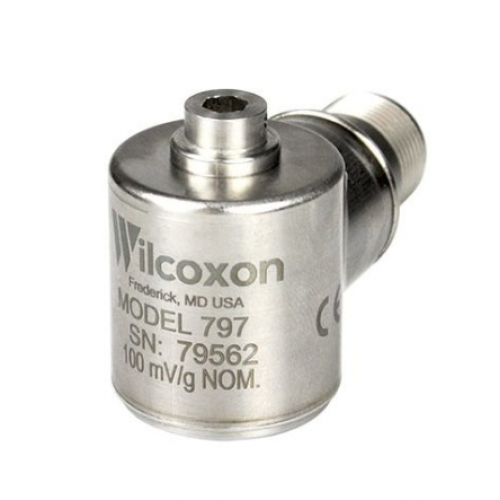

The Wilcoxon Sensing Technologies 797 high performance accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed. It features a 1/4-28 captive socket head with 0.062" diameter safety wire hole for mounting, and has a MIL-C-5015 2-pin output connector. The 797 is case isolated, and has 100mV/g sensitivity and ±5% sensitivity tolerance.

The 797 accelerometer is manufactured in an ISO 9001 facility.

Features

• Dynamic vibration (IEPE) sensor output
• 80g peak acceleration range
• 1% amplitude nonlinearity
• Frequency response:
• ±5%: 3 to 5,000Hz
• ±10%: 2 to 7,000Hz
• ±3 dB: 1 to 12,000Hz
• 26kHz resonance frequency
• 100Ω max output impedance
• 500g peak vibration limit
• 5,000g peak shock limit
• Hermetic sealing
• PZT ceramic / shear sensing element
• MIL-C-5015 2-pin connector
