The Fisher Labs TW9000 Multi-Frequency Underground Utility Locator and Line Tracer System Kit is a rugged, multi-frequency underground utility locating system that employs digital signal processing technology to enable the operator to locate and trace buried utilities quickly and accurately. This system is composed of a transmitter, receiver, conductive connection kit, transmitter rechargeable battery kit, receiver rechargeable battery kit, and a soft carrying case.

The TW9000 Transmitter is a powerful multi-frequency signal generator designed to efficiently energize buried utilities from an above-ground location. This transmitter provides three means of connecting to a utility.

Specifications - Transmitter

• Max. Output Current: 0.45A
• Max. Output Voltage: 90Vrms
• Max. Output Power: 9.5W for 512 Hz, 8.125 kHz, 33.025 kHz/0.95W for 82.175 kHz
• Output Frequencies: 512 Hz, 8.125 kHz, 33.025 kHz, 82.175 kHz
• Operating Modes: Direct Connection, Coupling Clamp Connection, Inductive Connection
• Weight: 5.6 lb.
• Operating Time: 8 hours at 7W

Specifications - Receiver

• Operating Modes: Peak/Null Mode, Wide Peak Mode, Narrow Peak Mode, Null Mode, Passive Power Mode, Sonde Mode
• Weight: 3.8 lb.
• Operating Time: 17 hours (Li-Ion), 8 hours (D-Cell)

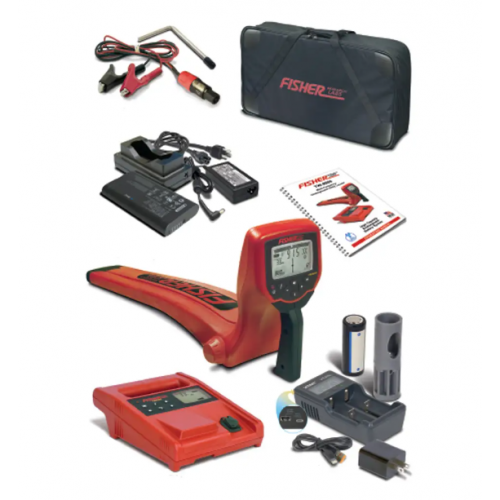

Kit Includes;

1 - Transmitter

1 - Receiver

1 - Conductive Connection Kit

1 - Transmitter Rechargeable Battery Kit

1 - Receiver Rechargeable Battery Kit

1 - Soft Carrying Case

1 - User Manual
