The Fisher Labs TW9000-CC5 Multi-Frequency Underground Utility Locator and Line Tracer System Kit is a rugged, multi-frequency underground utility locating system that employs digital signal processing technology to enable the operator to locate and trace buried utilities quickly and accurately. This system is composed of a transmitter, receiver, conductive connection kit, transmitter rechargeable battery kit, receiver rechargeable battery kit, inductive coupling clamp, and a soft carrying case.

The TW9000 Transmitter is a powerful multi-frequency signal generator designed to efficiently energize buried utilities from an above-ground location. This transmitter provides three means of connecting to a utility.

The first method of 'direct connection' is the preferred method in which it is capable of transferring the most power to the utility. The second method of 'coupling clamp' transfers power inductively to an exposed utility conduit when used with a coupling clamp accessory such as the CCLAMP-5-MF. The third method of 'inductive' transfers power through the ground inductively to the utility when no direct connection or coupling clamp access points are available.

Specifications - Transmitter

• Max. Output Current: 0.45A
• Max. Output Voltage: 90Vrms
• Max. Output Power: 9.5W for 512 Hz, 8.125 kHz, 33.025 kHz/0.95W for 82.175 kHz
• Output Frequencies: 512 Hz, 8.125 kHz, 33.025 kHz, 82.175 kHz
• Operating Modes: Direct Connection, Coupling Clamp Connection, Inductive Connection
• Weight: 5.6 lb.
• Operating Time: 8 hours at 7W

Specifications - Receiver

• Operating Modes: Peak/Null Mode, Wide Peak Mode, Narrow Peak Mode, Null Mode, Passive Power Mode, Sonde Mode
• Weight: 3.8 lb.
• Operating Time: 17 hours (Li-Ion), 8 hours (D-Cell)

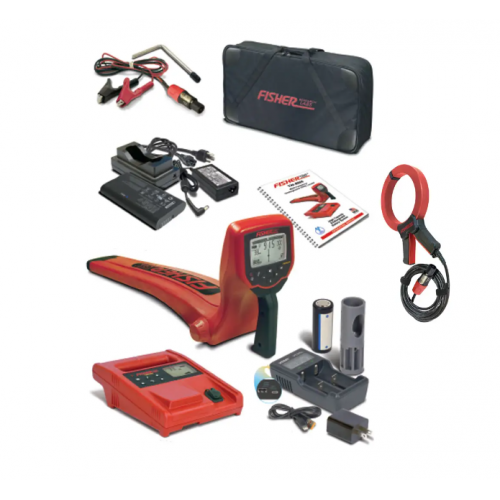

Kit Includes;

1 - Transmitter

1 - Receiver

1 - Conductive Connection Kit

1 - Transmitter Rechargeable Battery Kit

1 - Receiver Rechargeable Battery Kit

1 - Inductive Coupling Clamp, 5 in. (CCLAMP-5-MF)

1 - Soft Carrying Case

1 - User Manual
