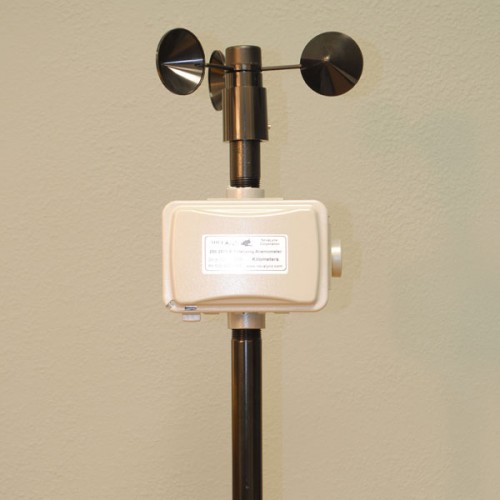

The NovaLynx 200-2510-B & 200-2511-B Totalizing Anemometers are simple to install and operate. The easy-to-read display is housed in a NEMA-4X enclosure and is powered by an internal lithium battery with a 5+ year life.

The display module measures wind run by counting pulses generated by the cup-style wind sensor. The number of pulses is multiplied by a scaling factor and displayed in units of statute miles or kilometers. Average wind speed can be calculated from the difference between successive counter readings divided by the time interval between readings.

In an evaporation station, the anemometer is typically mounted on the platform supporting the evaporation pan. The unit is supplied with a pre-drilled mounting flange for this purpose.

Specifications

• Display meter: Supertwist LCD, 8 digits, 12 mm high
• Resolution: 1/10 of a unit (Miles or Kilometers)
• Max speed: 75 mph (0-33.5 m/s), survival 100 mph (44.7 m/s)
• Speed threshold: 0.8 mph (0.4 m/s)
• Cup constant: 960 revolutions per mile (597 revolutions per kilometer)
• Transducer type: Reed switch
• Power source: Single or dual battery (CR 1/2 AA 3V Lithium)

Battery life:

Single battery: 5 years typical

Dual batteries: 10 years typical

• Noise immunity: IEC 801 Level 3
• Assembled size: 9" diameter (23 cm) x 15" tall (38 cm)
• Weight/Shipping: 5 lbs (2.3 kg) / 9 lbs (4.1 kg)
