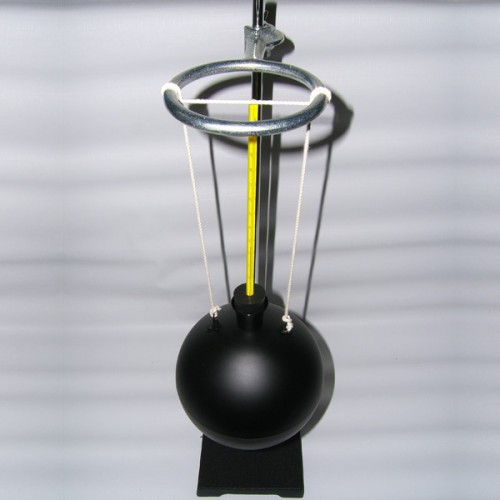

The 210-4417 Globe Thermometer is used in studies to determine heat stress. A 6-inch-diameter hollow copper sphere is painted with a matte black paint to absorb the radiant heat from surrounding objects. After a time lag, the temperature at the center of the sphere is a measure of the radiant heat. A thermometer inserted through a liquid-tight fitting indicates this temperature from 0° to 100°C (0.5° graduations). The thermometer can be replaced with a 1/4-inch-diameter electronic thermometer for connecting to a data logger or other device. The 210-4417 is supplied with a heavy stand and mounting support.

Specifications

• Measuring range: 0° to 100°C
• Graduations: 0.5°C

Dimensions:

• Thermometer and globe: 6 dia x 16" H (152 x 405 mm)
• Mounting stand: 22" H (559 mm)

Weight/shipping: 5 lbs/10 lbs (2.3 kg/4.5 kg)
