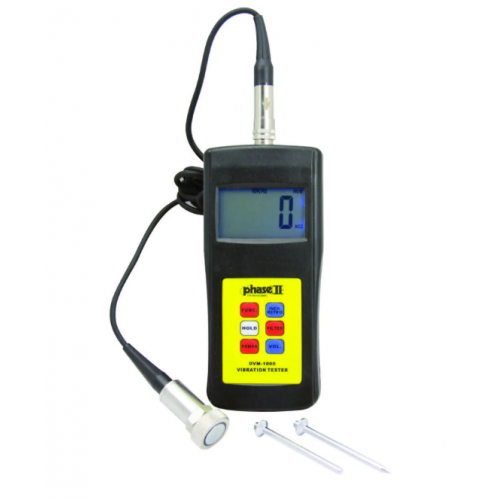

The Phase II DVM1000 Digital Vibration Tester measures Velocity, Acceleration, Displacement, and RPM. Full frequency ranges are utilized for broad detection abilities. Rich with features, the Phase II DVM-1000 does not pull any punches, offering statistics, inch/metric conversion, hold function, and more.

Futures;

• Acceleration peak value: 0.1 m/s to 200 m/s or 0.3 f/m/s to 656 ft/m/s; Frequency range: 10 Hz to 1 KHz or 10 Hz to 10 KHz
• Velocity (RMS): 0.1 (mm/s) to 400 (mm/s) or 0.004 in./s to 16.0 in./s; Frequency range: 10 Hz to 1 KHz
• Displacement peak-to-peak: 0.001 (mm) to 2.0 (mm) or 0.04 mil to 80 mil; Frequency range: 10 Hz to 500 Hz
• RPM (revolution): 5 r/min to 100,000 r/min
• Frequency: 0.1 to 10 KHz
• Accuracy: < 5%
• Operating temperature: 32 °F to 113 °F
• Power supply: Four AAA batteries
• Quick and accurate analysis for checking balance and alignment of rotating objects
• Large LCD display
• Statistics: Mean, Max, MIN, No. of Measurements and Std deviation
• Inch/Metric conversions with push of button
• Max hold function
• Regulated output: AC output 2.0V peak full scale

Kit includes;

1 - Powerful Magnet

1 - Accelerometer

1 - Stinger Probe (Cone)

1 - Stinger Probe (Ball)

1 - Carry Case

1 - User Manual
