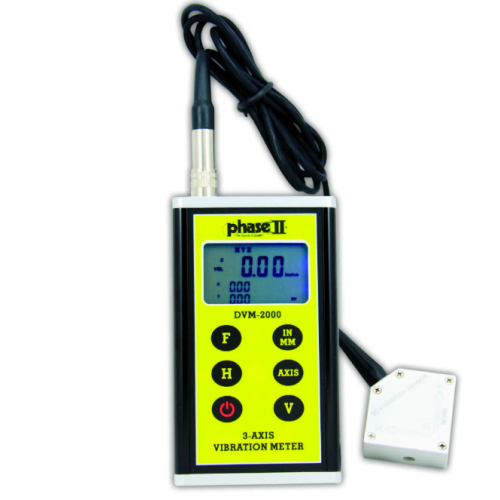

The Phase II DVM-2000 3-D Vibration Meter utilizes the 3-axis piezoelectric accelerometer to measure velocity, acceleration, and displacement. This tester offers an accurate analysis for checking the balance and alignment of a rotating object. Inch or metric conversion is possible with a single push of a button.

• Acceleration Peak Value: 0.1 to 400 m/s

• Velocity RMS: 0.1 to 400mm/s
• Displacement Peak-to-Peak: 0.001 to 4.00mm
• Accuracy: +/-5%N+0.2

Futures;

• Acceleration peak value: 0.1 m/s to 400 m/s or 0.3-1312 ft/s2; 0.0 to 40g; Frequency range: 10 Hz to 10 KHz

• Velocity(RMS): 0.1 (mm/s) to 400 (mm/s) or 0.004 in./s to 16.0 in./s; Frequency range: 10 Hz to 1 KHz
• Displacement peak to peak: 0.001mm to 4.0mm or 0.04 mil to 160 mil; 10 Hz to 1 KHz; Frequency range: 10 Hz to 500 Hz
• Accuracy: +/-5% N + 0.2
• Operating temperature: 32 °F to 120 °F / < 95% RH
• Power supply: Two AA batteries
• Quick accurate analysis for checking balance and alignment of rotating object
• 3-Axis accelerometer (X, Y, Z or XYZ)
• Large LCD display w/backlight
• Inch/Metric Conversion with the push of button
• Max hold function
• Regulated output: AC output 2.0v peak full scale
• Rugged all metal body construction

Kit Includes;

1 - Powerful Magnet

1 - 3-Axis Accelerometer

1 - Stinger Probe (Point)

1 - Stinger Probe (Ball)

1 - Carry Case

1 - User Manual
