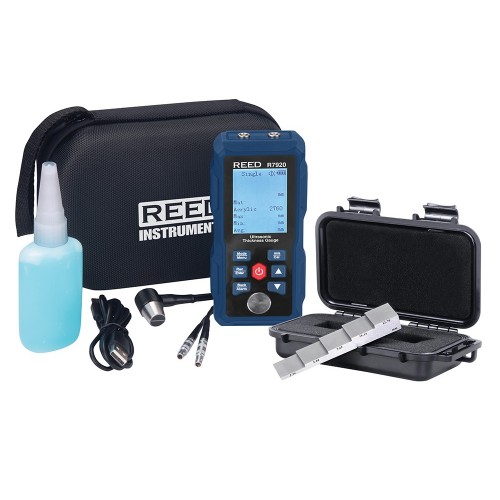

REED R7920

This ultrasonic thickness gauge is a portable device used for non-destructive measurement of the thickness of metal and other materials. It uses high-frequency sound waves to determine the thickness of a material by measuring the time it takes for the sound waves to travel from the gauge to the material and back. The R7920 features user-adjustable high/low alarms, internal memory capable of storing up to 300 measurements, and a simple user interface, making it suitable for use by technicians and inspectors in a variety of industries.

Features

Measures the thickness of steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron

Easy-to-read backlit LCD display

User-selectable units of measure (in/mm)

Internal memory stores up to 300 measurements

Displays sound velocity at the touch of a button

User-adjustable High/Low alarms

Automatic material calibration

Auto shut-off and low battery indicator

REED R7920 Specifications

Measuring Range	0.04 to 11.8" (1 to 300mm)
Accuracy	<10mm: ±0.1mm ≥10mm: ±(1% rdg. +0.1mm)
Resolution	0.1mm/0.01mm/0.01"
Velocity Range	1000 to 9999m/s (0.039 to 0.394in/µs)
Compatible Materials	Steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron
Display	2.4" monochrome dot matrix screen
Backlight	Yes
Probe Length	3' (91cm)
Probe Diameter	0.5" (12.7mm)
Internal Memory	Yes (up to 300 readings)
Low Battery Indicator	Yes
Power Supply	Built-in lithium battery (3.7V 2000mAh)
Battery Life	Approx. 16 hours (Fully Charged)
Product Certifications	CE
Operating Temperature	32 to 104°F (0 to 40°C)
Probe Operating Temperature	32 to 104°F (0 to 40°C)
Operating Humidity Range	20 to 80%
Storage Temperature	14 to 122°F (-10 to 50°C)
Storage Humidity Range	20 to 70%
Dimensions	5.5 x 2.6 x 1.12" (140 x 66 x 28.5mm)
Weight	6.17oz (175g)
