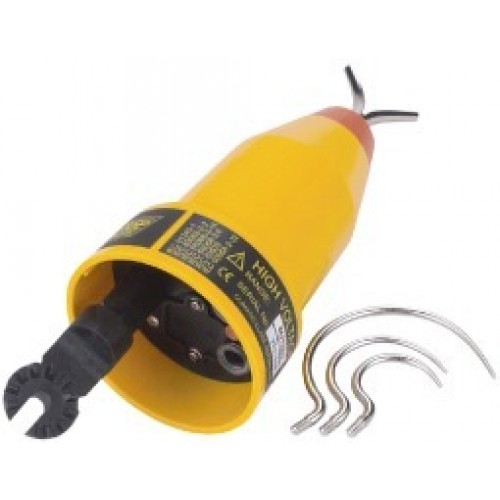

  • SEW 213 HVD CAPACITIVE CONTACT HIGH VOLTAGE DETECTOR

FEATURES

  • Waterproof design, protection class : IP65.
  • Excellent shock resistance.
  • Rugged nylon moulding.
  • Auto on (when voltage detected).
  • Excellent drop resistance.
  • Good vibration resistance.
  • Loud sound alarm indication.
  • Built-in proving and self-test circuit.
  • High bright color-coded LEDS.
  • Works from standard 9V battery.
  • Interchangeable contact electrode.
  • Use in all whether conditions.
  • Compatible with all link sticks.
  • Lightweight, robust & compact.
  • Models available from 11kV to 132kV.
  • Suitable for indoor and outdoor use.
  • Self(auto on) or manual arming.
  • Easy access to batteries.
  • Customized threshold on demand.
  • Auto off (if no voltage detected).
  • Dimensions:
  • 300(L) × 100(W) × 100(D)mm
  • Weight:
  • Approx. 550g (battery included)
  • Meets EN 61243-1
  • (excludes 220HVD, 221HVD, 225HVD)

SPECIFICATIONS

PART#213HVD214HVD215HVD216HVD
System Voltage11kV33kV66kV132kV
Threshold Set within Range1.65kV To 4.4kV4.95kV To 13.2kV11kV To 13kV13.2kV To 59.4kV
Response Time<1 Sec<1 Sec<1 Sec<1 Sec
Auto-OFF3Min3Min3Min3Min
Bridging ProtectionYESYESYESYES
Spark ProtectionYESYESYESYES
Battery Low<7V<7V<7V<7V
Threshold3.02kV9.07kV12kV13.2kV
Battery Current<30mA<30mA<30mA<30mA
Green = ArmedYESYESYESYES
Red = V DetectedYESYESYESYES
Test / Arming ButtonYESYESYESYES


PART#217HVD218HVD219HVD220HVD221HVD
System Voltage11/33kV44/132kV66/132kV6.6/132kV11/132kV
Threshold Set within Range3.3kV To 4.95kV13.2kV To 19.8kV13.2kV To 29.7kV2kV To 3kV4.4kV To 6.6kV
Response Time<1 Sec<1 Sec<1 Sec<1 Sec<1 Sec
Auto-OFF3Min3Min3Min3Mi3Min
Bridging ProtectionYESYESYESYESYES
Spark ProtectionYESYESYESYESYES
Battery Low<7V<7V<7V<7V<7V
Threshold4.12kV13.2kV13.2kV2.5kV5kV
Battery Current<30mA<30mA<30mA<30mA<30mA
Green = ArmedYESYESYESYESYES
Red = V DetectedYESYESYESYESYES
Test / Arming ButtonYESYESYESYESYES


PART#222HVD223HVD224HVD225HVD226HVD
System Voltage11/44kV33/132kV44kVkV USER DEFINED12/36kV
Threshold Set within Range4.4kV To 4.95kV13.2kV To 14.85kV6.6kV To 17.6kVXx kV To Xx Kv3.6kV To 5.4kV
Response Time<1 Sec<1 Sec<1 Sec<1 Sec<1 Sec
Auto-OFF3Min3Min3Min3Mi3Min
Bridging ProtectionYESYESYESYESYES
Spark ProtectionYESYESYESYESYES
Battery Low<7V<7V<7V<7V<7V
Threshold4.75kV13.2kV12kVUser's  Spec5.4kV
Battery Current<30mA<30mA<30mA<30mA<30mA
Green = ArmedYESYESYESYESYES
Red = V DetectedYESYESYESYESYES
Test / Arming ButtonYESYESYESYESYES
