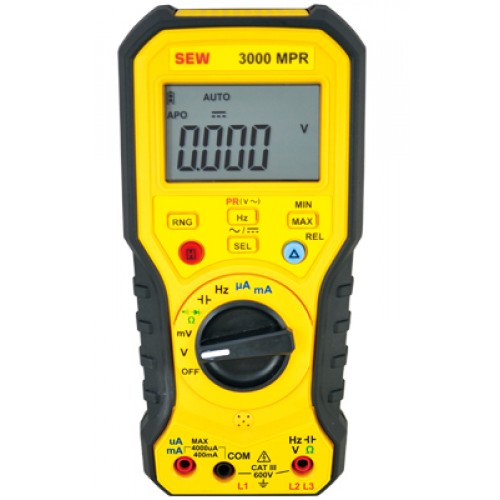

  • SEW 3000 MPR DIGITAL MULTIMETER AND PHASE ROTATION TESTER

FEATURES

  • 4000-count LCD
  • Auto ranging
  • Voltage, Resistance, Current, Continuity, Diode measurement
  • Can measure Resistance up to 200.0 Mohm
  • Checks a wide range of 3-phase power sources (80~750VAC)
  • Phase Rotation indication : clockwise and counter-clockwise on LCD
  • The LCD will show AC voltage between phases and Phase Rotation
  • Wide range for capacitance test: 0~40000μF(40.00mF)
  • REL / Auto-Zero function
  • MAX /MIN function
  • VAHz function
  • Frequency : 40.00 MHz
  • Data hold function
  • Over range indication
  • Low battery detection
  • Auto power off in 15 minutes
  • Convenient stand for viewing
  • Comply with EN 61010-1, CAT III 600V for the range of 600V AC/DC

SPECIFICATIONS

DC Voltage
RangesResolutionAccuracy
400mV0.1mV±(0.5%rdg+3dgt)
4V1mV
40V10mV
400V100mV
1000V1V
․Input impedance : 10MΩ
AC Voltage
RangesResolutionAccuracy
400mV0.1mV±(1.0%rdg+5dgt)
4V1mV
40V10mV
400V100mV
750V1V
․Input impedance : 10MΩ
DC mA / µA
RangesResolutionAccuracy
400µA0.1μA±(1.0%rdg+5dgt)
4000µA1μA
40mA0.01mA
400mA0.1mA
․Overload Protection 0.5A/600V fast blow fuse for 400mA
AC mA / µA
RangesResolutionAccuracy
400µA0.1μA±(1.2%rdg+5dgt)
4000µA1μA
40mA0.01mA
400mA0.1mA
․Overload Protection 0.5A/600V fast blow fuse for 400mA
Resistance
RangesResolutionAccuracy
40Ω0.01Ω±(1.2%rdg+3dgt)
400Ω0.1Ω
4kΩ1Ω
40kΩ10Ω
400kΩ100Ω
4MΩ1kΩ
40MΩ10kΩ±(2.0%rdg+4dgt)
200MΩ100kΩ±(2.3%rdg+4dgt)
Capacitance
RangesResolutionAccuracy
4 nF1 pF±(3.0%rdg+10dgt)
40 nF10 pF
400 nF100 pF
4 µF1 nF
40 µF10 nF
400 µF100 nF
4 mF1 µF
40 mF10 µF
Continuity
RangesAudible threshold
400ΩLess than 30Ω
Diode
RangesAccuracy
2V±(1.5%rdg+3dgt)
Frequency
RangesResolutionAccuracy
400Hz0.1Hz±(0.5%rdg+2dgt)
4kHz1Hz
40kHz10Hz
400kHz100Hz
4MHz1kHz
40MHz10kHz
Phase Rotation
Input Voltage80~750VAC
Frequency range40~80Hz
Circuit structureAll electronic (not mechanical)
GENERAL
Dimensions188mm(L) x 90mm(W) x 54mm(D)
Weight
(battery included)		Approx. 346g
Power source1.5V (AAA) battery x 2
Safety standardEN 61010-1 CAT III 600V
EN 61326-1
