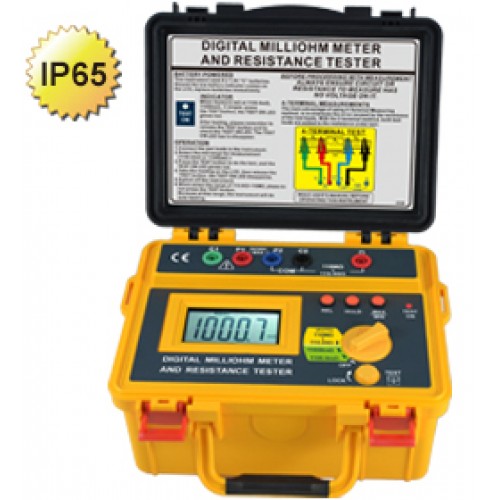

  • SEW 4338 mO MILLIOHM METERS

FEATURES

  • Protection class: IP65 (Lid closed)
  • 4-Wire method for mΩ.
  • It's about 100mA at 1100.0mΩ range.
  • It's about 10mA at 11000mΩ range.
  • Measures down to 100µΩ (0.1mΩ).
  • Maximum resolution of 100µΩ.
  • Large LCD (68×34mm).
  • Relative mode.
  • Data hold function.
  • MAX/MIN function.
  • Power source: 1.5V "C" battery × 8
  • Long battery life and stable power.
  • Low battery indication.

SPECIFICATIONS

mΩ measurement (4-wire method)
Measuring ranges (mΩ)0~1100.0mΩ in steps of 100uΩ
0~11000mΩ in steps of 1mΩ
Accuracy±0.8% of reading ±4 digits over the operating temperature range 0°C ~ 40°C, with the supplied test leads
Resistance measurement(Auto-ranging/ 2-wire method)
RangeResolutionAccuracy
110.00Ω0.01Ω0~2MΩ: ±(1.2%rdg+3dgt)
2~40MΩ: ±(2.0%rdg+4dgt)
40~110MΩ: ±(8.0%rdg+4dgt)
1.1000kΩ0.1Ω
11.000kΩ1Ω
110.00kΩ10Ω
1.1000MΩ100Ω
11.000MΩ1KΩ
110.0MΩ100KΩ
Protection fuse200mA/250V×1
Dimensions250(L) × 190(W) ×126(D)mm
Weight
(battery included)		Approx. 1848g
Power source1.5V "C" battery × 8
Safety standardEN 61010-1
EN 61326-1
