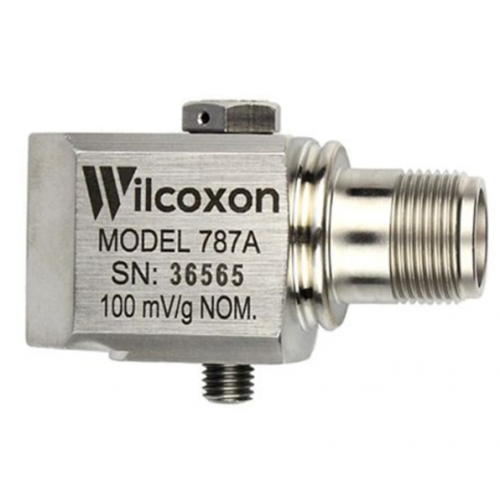

The Wilcoxon Sensing Technologies 787A series accelerometer is suitable for a wide range of industrial applications and is constructed with 316L stainless steel. The 787A's rugged, hermetically sealed design has a 1/4-28 captive hex head screw with a 0.046in diameter safety wire hole for mounting and a 2 pin MIL-C-2015 style connector. M12 models feature a M6 captive screw for mounting and M12 4-pin connector. M8 models have a M8 captive hex head screw with 0.046in diameter safety wire hole for mounting and a R6 type connector.

The 787A is case isolated and features ESD, overload, and reverse wiring protection. It is API 670 compliant and is manufactured in an ISO 9001 facility.

Features

• 80g peak acceleration range
• 500g peak vibration limit
• 5,000g peak shock limit
• Frequency response:
• ±10%: 1 to 5,000Hz
• ±3 dB: 0.5 to 10,000Hz
• 22kHz resonance frequency
• Power requirements:
• Voltage source: 18 - 30VDC
• Current regulating diode: 2 - 10mA
• 100Ω max output impedance
• Hermetic sealing
• MIL-C-5015 connector
• PZT ceramic / shear sensing element
