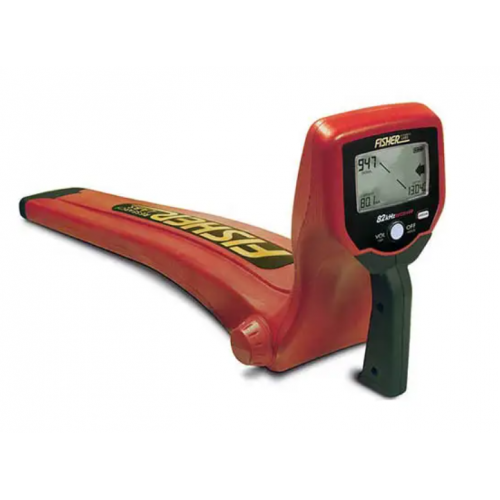

The Fisher Labs TW82 Single Frequency Digital Underground Line Tracer is an easy-to-use single frequency, one-button pipe and cable locating system designed to trace all conductive lines including pipes, cables and conductive electrical lines. Its ultra-fast target response ensures fast and accurate locating. The transmitter utilizes automatic load impedance matching to adjust output signal for best power output for the ground conditions. The TW82 is weatherproof and impact-resistant, and features sealed, thick-wall, injection-molded construction.

Futures

• Displays Depth, Azimuth, Signal Current, Left/Right/Over-Target
• Provides full-time continuous readouts
• Weatherproof, impact resistant and IP65 compliant housing
• Two-button receiver operation
• Ergonomic, lightweight design
• Programmable lateral mode
• Operating Temperature Range: -4°F to 140°F (-20°C to +60°C)
• Transmitter Output Frequency: 82.175 kHz
• Receiver Frequency: 82.175 kHz
• Left/Right Guidance: Audible and Visual
• Azimuth Indicator: Visual
• Conductive Tracing Impedance Matching Range:
• Normal Power: 2 to 8000 ohms -6dB
• High Power: 2 to 3000 ohms -6dB
• Inductive Tracing Magnetic Strength:
• Normal Power: 15 Vm2
• High Power: 25 Vm2
• Transmitter Battery Type: Four D-cell batteries (included)
• Transmitter Battery Life: Typically 130 hours
• Signal Strength Indicator: Numeric display & audible
• Signal Current Measurement: Numeric display, automatic
• Depth Measurement: Numeric display, automatic
• Receiver Battery Type: Two D-cell batteries (included)
• Receiver Battery Life: 100 hours (average)

Kit Includes;

6 - D-Cell Batteries

1 - Transmitter Unit

1 - Receiver Unit

1 - Ground-Rod Assembly

1 - Soft Carrying Case

1 - User Manual
