REED R1620

The R1620 is a compact sound-level meter that can be used either standalone or with the REED Smart Series App (available for download on Android and iOS). When connected to the App, the R1620 can be set up to data log measurements over a given period.

Features

High accuracy of ±1.5dB
A & C frequency weighting
Fast & Slow time weighting
Easy to operate, designed for one-hand operation
Integrated display provides flexibility for use without a mobile device
Magnetic Backing allows the instrument to be mounted to metallic surfaces
Data Hold function
Low battery indicator and auto shut off
Tripod mount for long-term monitoring

When used with the REED Smart Series App:

Real-time data logger
User-selectable sampling rate from 1 to 120 seconds
Bluetooth 5.0 provides connectivity to instruments up to 246' (75m) away
Connect, measure and data log up to 6 instruments, simultaneously
Easy setup with automatic app integration for compatible REED Smart Series instruments
Export data via Excel or PDF and create custom reports that can be emailed from a mobile device

REED R1620 Specifications

Measuring Range 30 to 130dB

Accuracy ±1.5dB (at 1kHz)

Resolution 0.1dB

Display Enhanced Black Twisted Nematic (EBTN) LCD

Display Size 1.3" (34mm)

Backlit Display Yes

Data Hold Yes

Time Weighting Fast/Slow (125mS and 1s)

Frequency Range 31.5Hz to 8kHz

Refresh Rate Fast 0.5 times/second,

Slow 1 times/second

Frequency Weighting A/C

Microphone 0.5" (12.7mm) electret condenser

Data Logging Capabilities Yes (with Smart Series App)

Real-Time Clock and Date Stamp Yes (with Smart Series App)

Customizable Sampling Rate Yes

Overrange Indicator Yes

Auto Shut-Off Yes (adjustable)

Tripod Mountable Yes

Magnetic Backing Yes

Low Battery Indicator Yes

Power Supply 4 x AAA Batteries

Battery Life Approx. 50 hours (sampling time dependent)

Connectivity Bluetooth® 5.0

Bluetooth® Range Up to 246' (75m)

Max # of Connected Devices 6

Software REED Smart Series App (iOS and Android)

App Supported Languages English, French

Product Certifications CE, UKCA, FCC, IC ID

Maximum Operating Altitude 6561' (2000m)

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature -4 to 140°F (-20 to 60°C)

Operating Humidity Range 10 to 90%

Storage Humidity Range 10 to 90%

Dimensions 7.1 x 1.5 x 1" (180 x 38 x 25mm)

Weight 3.5oz (100g)

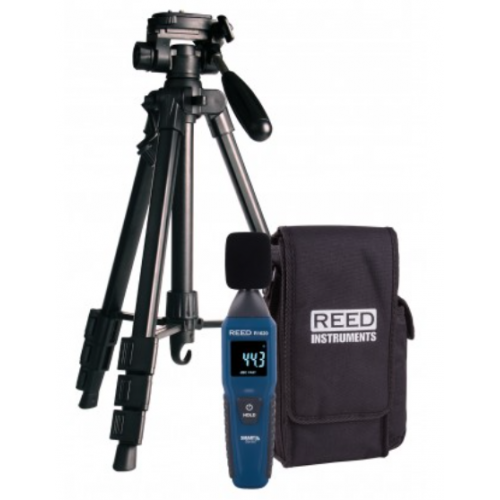

What's included with the REED R1620

REED R1620 Sound Level Meter, Bluetooth Smart Series

Real-time data logging Sound Level Meter with Bluetooth 5.0 connectivity wirelessly connects to the REED Smart Series App.

REED R1500 Tripod

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.

REED CA-05A Medium Soft Carrying Case

Features a main instrument compartment and a side pouch for accessories.
