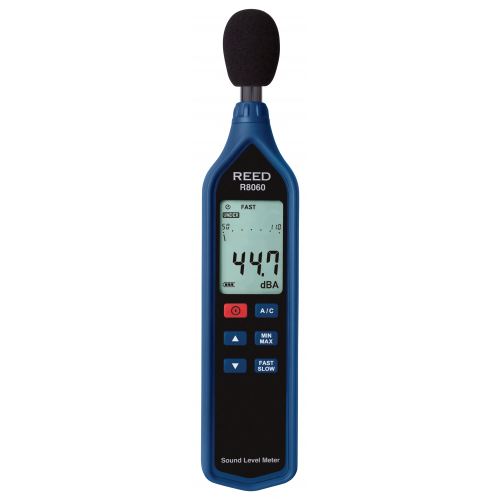

REED R8060

This sound level meter meets IEC Type 2 requirements and offers high accuracy for critical measurements. The R8060 features over/under range indicators for each of the 3 measurement ranges, a digital analog bargraph and the ability to keep track of Min/Max readings.

Features

• High accuracy of ±1.4dB meets Type 2 standards

• Triple range measurement (60dB dynamic range)
• A & C frequency weighting
• Fast & Slow time weighting
• Easy-to-read LCD display
• Digital analog bargraph
• Min/Max hold
• AC/DC output signal for use with dataloggers
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off

REED R8060 Specifications

Measuring Ranges 30 to 130dB

Low: 30 to 90dB

Med: 50 to 110dB

High: 70 to 130dB

Dynamic Range 60dB (in each range)

Accuracy ±1.4dB

Resolution Digital: 0.1dB

Analog: 2dB

Response Time Digital: 500ms

Analog: 100ms

Frequency Range 20Hz to 8kHz

Frequency Weighting A, C

Time Weighting Fast/Slow (125ms and 1s)

Microphone 0.5" (12.7mm) electret condenser

Digital Analog Bargraph Yes (30 segment)

Display 4-digit LCD

Min Yes

Max Yes

Alarm Indicators Under and Over (visual on-screen)

Auto Shut-off Yes (after 30 mins/off)

Tripod Mountable Yes

Low Battery Indicator Yes

Power Supply 9V battery

Output Yes (AC/DC)

Battery Life Approx 50 hours

Product Certifications CE, IEC 61672-1 Class 2

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature 14 to 140°F (-10 to 60°C)

Operating Humidity Range 10 to 90%

Dimensions 10.2 x 2.2 x 1" (258 x 55 x 25mm)

Weight 6.5oz (185g)

What's included with the REED R8060

• Sound Level Meter
• Windshield Ball
• Soft Carrying Case
• Battery
