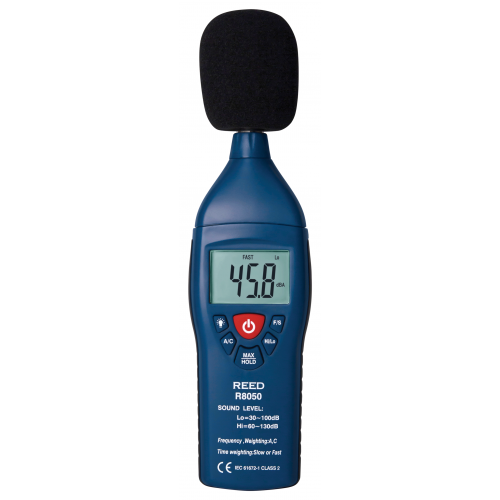

REED R8050 Offers

This sound level meter meets ANSI, and IEC Type 2 standards and features dual range measurement, fast & slow time weighting, data/max hold functions and a tripod mount for long-term monitoring.

Features

• High accuracy of ±1.4 dB meets Type 2 standards

• Dual range measurement (High and Low)
• A & C frequency weighting
• Fast & Slow time weighting
• Easy-to-read backlit LCD display
• Data hold and Max hold functions
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off

REED R8050 Specifications

Measuring Ranges 30-130 dB

Low: 30-100 dB

High: 60-130 dB

Dynamic Range 70 dB (in each range)

Accuracy ±1.4 dB

Resolution 0.1 dB

Response Time 500mS

Frequency Range 31.5 Hz to 8 kHz

Frequency Weighting A, C

Time Weighting Fast/Slow (125ms and 1s)

Microphone 0.5" (12.7mm) electret condenser

Display 4-digit LCD

Backlit Display Yes

Data Hold Yes

Max Yes

Alarm Indicators Over (visual on-screen)

Auto Shut-off Yes (after 15 mins)

Tripod Mountable Yes

Low Battery Indicator Yes

Power Supply 9V battery

Battery Life Approx 50 hours

Product Certifications CE, IEC 61672-1 Class 2, ANSI S1.4-1983

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature 14 to 140°F (-10 to 60°C)

Operating Humidity 10-90%

Dimensions 8.3 x 2.2 x 1.3" (210 x 55 x 32mm)

Weight 8.1oz (230g)

What's included with the REED R8050

• Sound Level Meter
• Microphone Windshield Ball
• Battery
• Carrying Case
