REED R8070SD

This R8070SD has triple range measurement and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features;

• High accuracy of ±1.0dB to 1kHz meets Type 2 standards
• Triple range measurement (50dB dynamic range)
• A & C frequency weighting
• Fast & Slow time weighting
• Real-time data logger with integrated SD memory card
• User selectable sampling rate from 1 to 3600 seconds
• Peak hold, Data hold and Min/Max hold
• Easy-to-read backlit LCD display
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off
• The single AC output jack (3.5mm stereo mini-plug) provides analog signals to frequency analysers, level recorders, FFT analysers, graphic recorders, etc.

REED R8070SD Specifications

Measuring Ranges 30 to 130dB

Low: 30 to 80dB

Med: 50 to 100dB

High: 80 to 130dB

Full: 30 to 130dB

Dynamic Range 50dB (in each range)

Accuracy 31.5Hz ±3.0dB, 63Hz ±2.0dB, 125Hz ±1.5dB, 250Hz ±1.5dB, 500Hz ±1.5dB, 1kHz ±1.0dB, 2kHz ±2.0dB, 4kHz ±3.0dB, 8kHz ±5.0dB

Resolution 0.1dB

Response Time 500ms

Frequency Range 31.5Hz to 8kHz

Frequency Weighting A, C

Time Weighting Fast/Slow (125ms and 1s)

Microphone 0.5" (12.7mm) electret condenser

Display 4-digit LCD

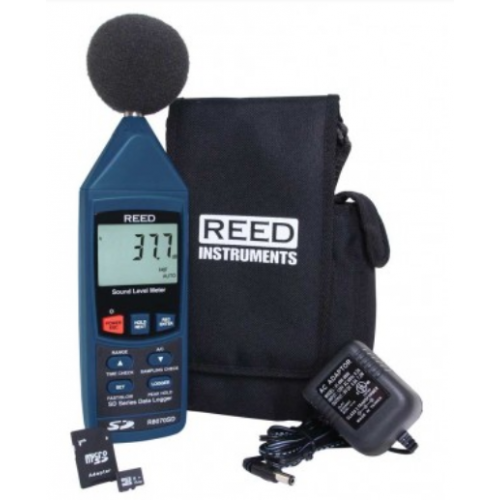

What's included with the REED R8070SD

REED R8070SD Data Logging Sound Level Meter

Real time data logger with integrated SD memory card measures/records general sound levels and meets IEC 61672-1 Type 2 standards.

REED RSD-16GB Micro SD Memory Card w/ Adapter, 16GB

For use with REED SD Series Data Loggers.

REED RSD-ADP-NA AC Adapter, 110V

For use with REED SD Series Data Loggers.
