REED R8085

This noise dosimeter has the ability to record sound levels (dB) and sound exposure (dose %) in order to determine an individual's sound exposure over an 8-hour period. The R8085 is a lightweight and compact Dosimeter designed to meet noise survey requirements established by OSHA (Occupational Safety and Health Administration) and the CCOHS (Canadian Centre for Occupational Health and Safety).

Features

• Noise dosimeter, sound level meter and data logger

• High accuracy of ±1.0dB meets Type 2 standards
• Designed to meet noise survey requirements for compliance with OSHA and CCOHS regulations
• Personal sound exposure meets IEC 61252, ANSI S1.25
• A and C frequency weighting
• Fast and Slow time weighting
• Lightweight and compact design
• Adjustable Criterion Level, Exchange Rate and Threshold
• USB interface with Windows® Compatible software to retrieve stored data (sold separately)
• Easy-to-read backlit LCD display
• Data hold and Min/Max hold
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off

REED R8085 Specifications

Measurement Type Sound Pressure Level: dB

Personal Noise Exposure: %Dose

Measuring Range(s) 35 to 130dB

Low: 35 to 80dB

High: 80 to 130dB

Auto: 35 to 130dB

Dose: 70 to 130dB

Dynamic Range 50dB (in each range)

Accuracy 31.5Hz ±3.0dB, 63Hz ±2.0dB, 125Hz ±1.5dB, 250Hz ±1.5dB,

500Hz ±1.5dB, 1kHz ±1.0dB, 2kHz ±2.0dB, 4kHz ±3.0dB,

8kHz ±5.0dB

Resolution 0.1dB

Response Time Approx. 1 sec

Frequency Range 31.5Hz to 8kHz

Frequency Weighting A, C

Time Weighting Fast/Slow (125mS and 1s)

Microphone 0.5" (12.7mm) electret condenser

Display 4-digit LCD

Backlit Display Yes

Data Hold Yes

Min Yes

Max Yes

Alarm Indicators Over (visual on-screen)

Datalogging Capabilities Yes

Real-Time Clock and Date Stamp Yes

Selectable Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)

Selectable Dose Measurement Rate Yes (0, 1, 5, 10, 15, 30mins/1, 2, 4, 8, 10, 12, 24hrs)

Auto Shut-off Yes (after 10 mins/off)

Tripod Mountable Yes

Low Battery Indicator Yes

Power Supply 3 x AAA batteries

Output Yes, RS-232/USB (optional)

PC Connectivity USB Cable (R8085-USB, optional)

Software PC Software (R8085-PC, optional)

Software OS Compatability Windows XP/Vista/7/8/10

Product Certifications CE, IEC61252, ANSI S1.25 for Noise Dose and Sound Exposure Meters, IEC 61672 Class 2/ANSI S1.4 Type S for Sound Level Meters

Operating Temperature 32 to 122°F (0 to 50°C)

Storage Temperature 14 to 140°F (-10 to 60°C)

Operating Humidity Range <85%

Dimensions 4.2 x 2.3 x 1.0" (107 x 58 x 25mm)

Weight 4.3oz (122g)

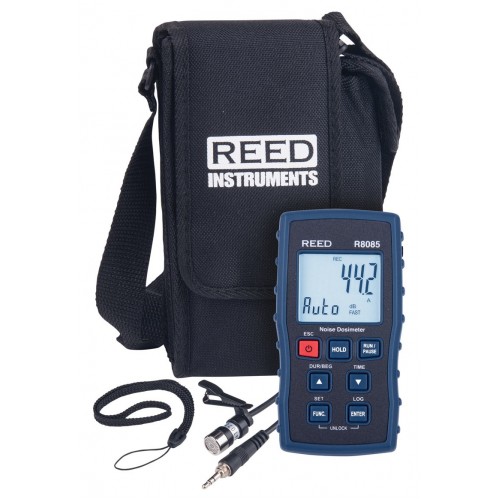

What's included with the REED R8085

• Dosimeter
• Microphone with Clip
• Wrist Strap
• Carrying Case
• Batteries
